X Stages

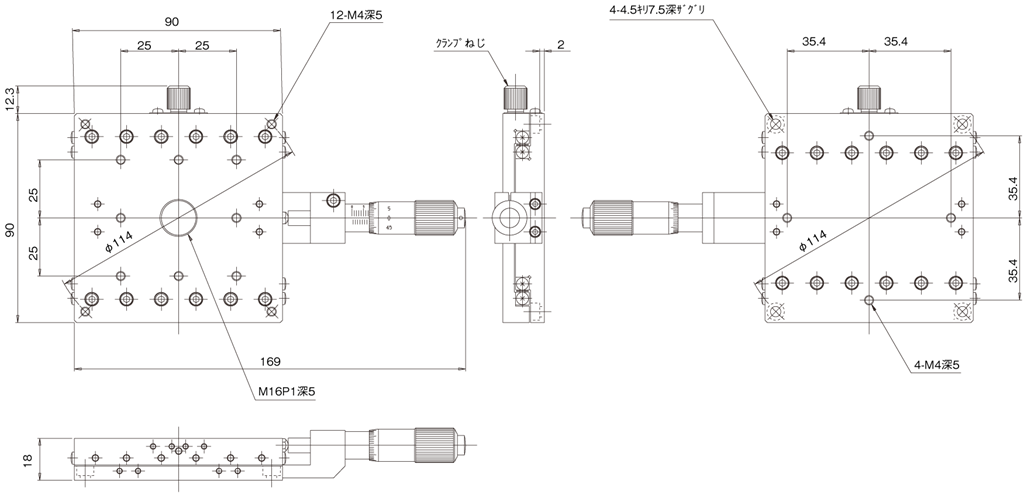

LS-947-C1

1
X axis slim stage 90 x 90
Estimate separately
Travel +/-7.5 mm
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

A thin and lightweight manual stage by using a V-groove and cross rollers (V-CR method) for the moving guide.
Micrometer head position is center of the table.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.
▲PAGE TOP

Specifications

Direction of travel X axis one direction
Table size 90 mm x 90 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHM-15A (Standard micrometer head)
Travel +/-7.5 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method V-groove and cross rollers
Travel accuracy Straightness 0.003 mm
Load capacity 78.4 N (8 kgf)
Weight 0.45 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
