X Stages

LS-M61-C6M

1
Micro stage
Estimate separately
Travel +/-1.7 mm
Table size 12 mm x 13 mm
YESRoHS対応状況

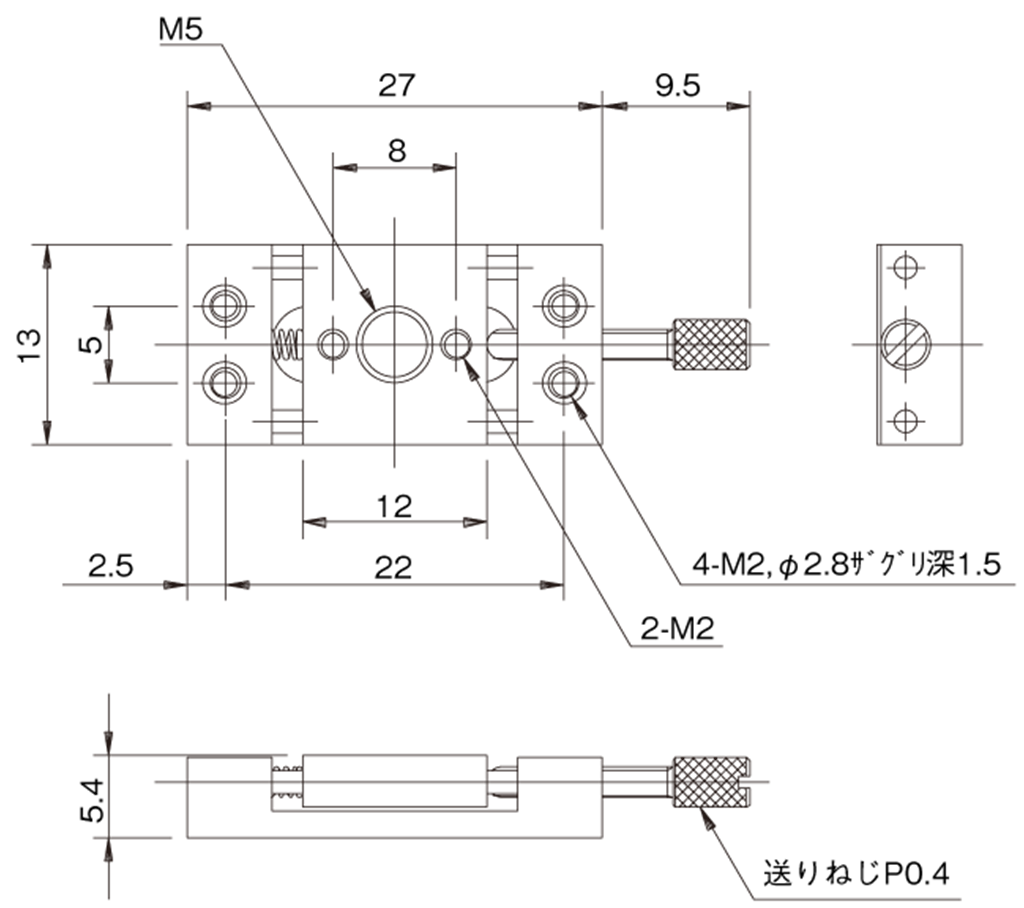

Product documentation

Description

Ultra compact and extremely lightweight fine movement X axis stage.
It is widely used for precision positioning applications such as small sensors, micro optics, and pinholes.
The through hole in the the center can be used as a transmission hole.

Specifications

Direction of travel X axis one direction
Table size 12 mm x 13 mm
Mounting position Center
Transfer mechanism Feed screw P=0.4 mm
Travel +/-1.7 mm
Lead of actuator 0.4 mm
Guiding method Shaft slide
Travel accuracy Straightness 0.05 mm
Load capacity 4.9 N (0.5 kgf)
Weight 0.005 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Cross-pierced bevel screw M1.4, 4 screws
