X Stages

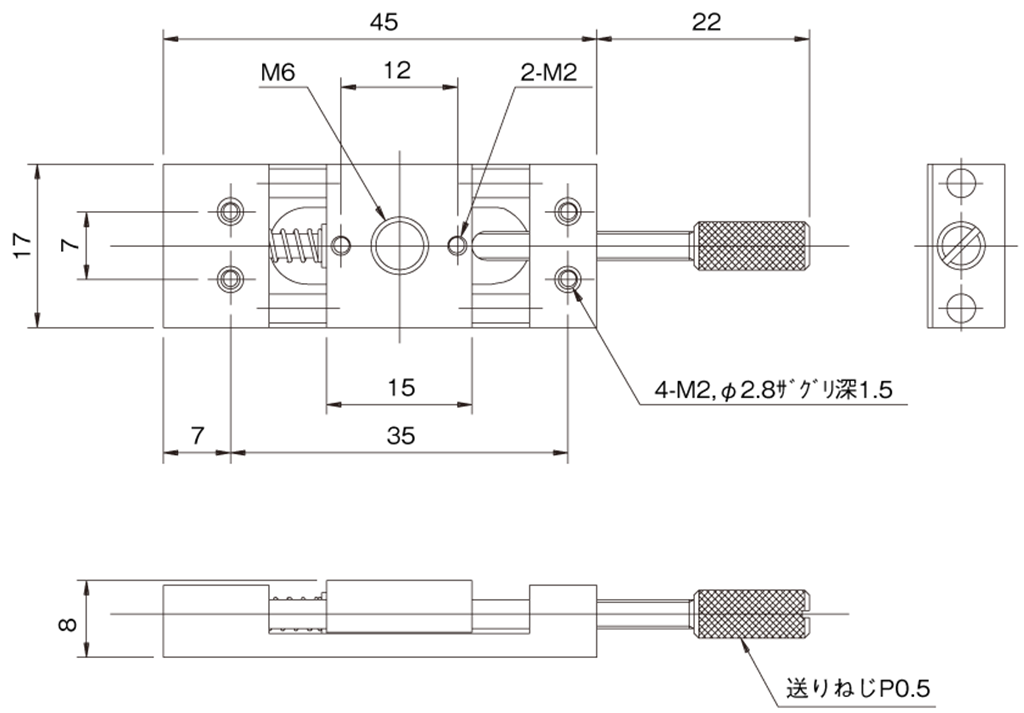

LS-M63-C6M

1
Micro stage
Estimate separately
Travel +/-5 mm
Table size 15 mm x 17 mm
YESRoHS対応状況

Product documentation

Description

Ultra compact and extremely lightweight fine movement X axis stage.
It is widely used for precision positioning applications such as small sensors, micro optics, and pinholes.
The through hole in the the center can be used as a transmission hole.

Specifications

Direction of travel X axis one direction
Table size 15 mm x 17 mm
Mounting position Center
Transfer mechanism Feed screw P=0.5 mm
Travel +/-5 mm
Lead of actuator 0.5 mm
Guiding method Shaft slide
Travel accuracy Straightness 0.05 mm
Load capacity 9.8 N (1 kgf)
Weight 0.02 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Cross-pierced bevel screw M1.4, 4 screws
