X Stages

SRS-1

1
X axis stage for mini-rail
Estimate separately
Travel +/-5 mm
Table size 30 mm x 30 mm

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 図面3D STEP
  • 図面3D PARASOLID
  • 技術資料
▲PAGE TOP

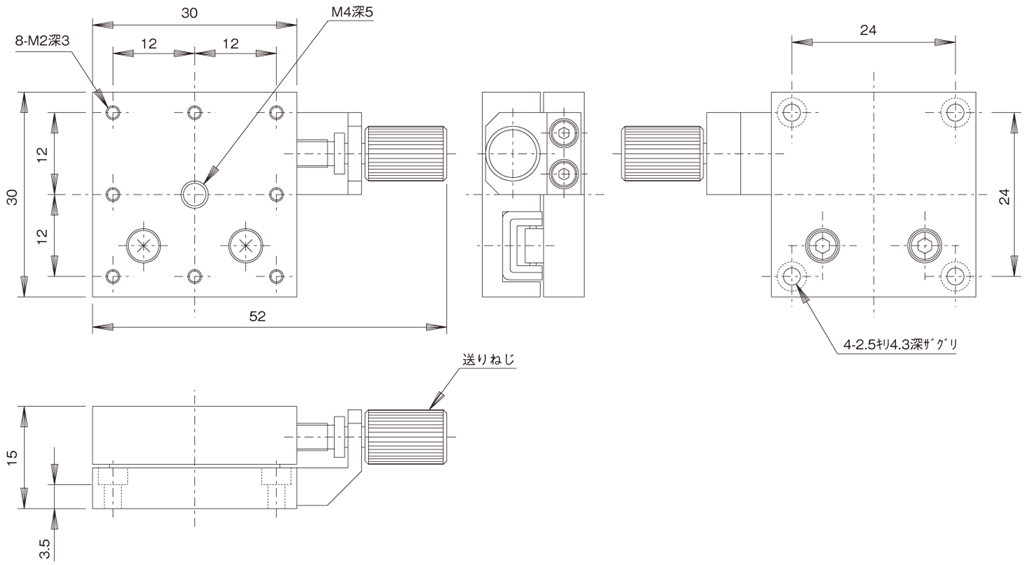

Description

Manual stage with a size of 30 mm x 30 mm.
Fine adjustment is possible by using a 0.5 mm pitch feed screw.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel X axis one direction
Table size 30 mm x 30 mm
Mounting position Center
Transfer mechanism Feed screw P=0.5 mm
Travel +/-5 mm
Lead of actuator Approx. 0.5 mm
Guiding method Ball slide
Travel accuracy Straightness 0.01 mm
Load capacity 9.8 N (1.0 kgf)
Weight 0.045 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M2, 4 screws
