Z Lift Stages

LV-5042-6

1

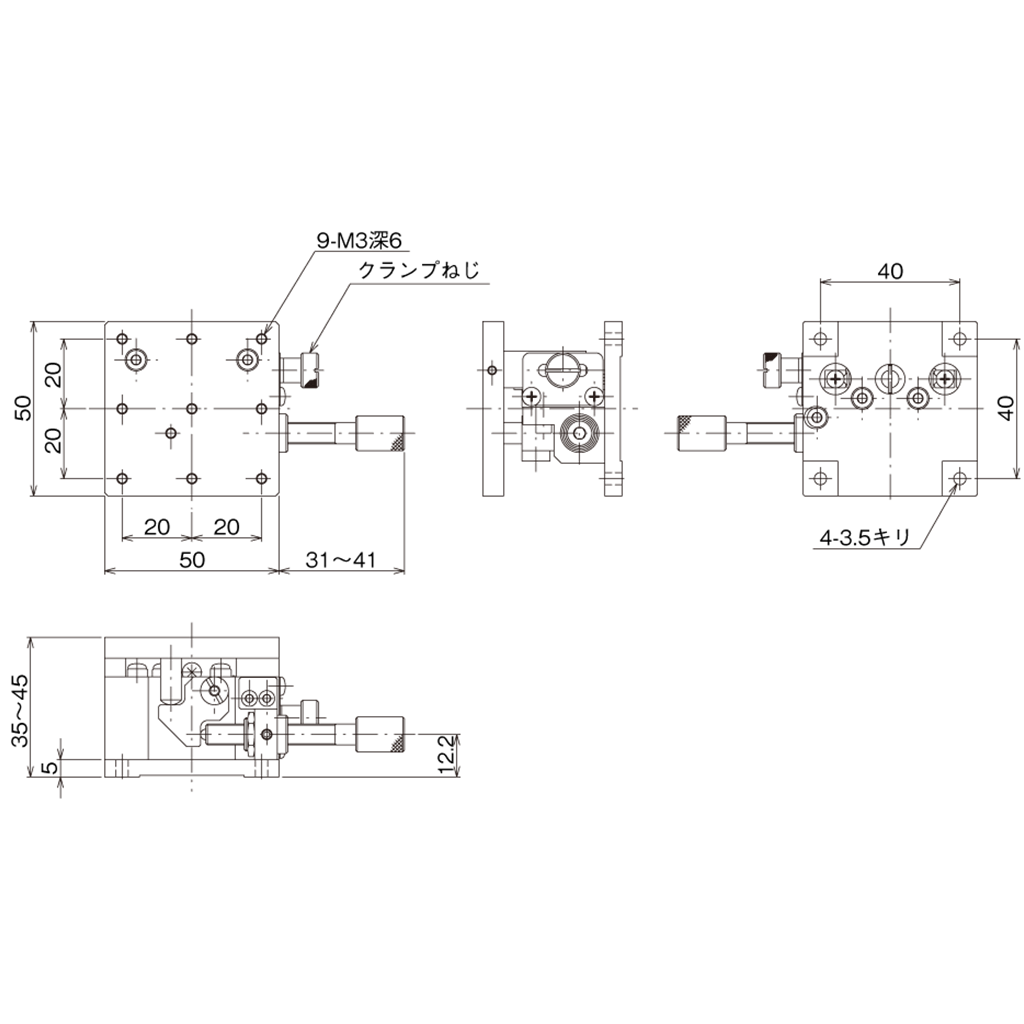

High-grade Z axis stage 50 x 50
Estimate separately
Travel 0 to 10 mm
Table size 50 mm x 50 mm
YESRoHS対応状況

Product documentation

Description

Z lift stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweightt.
Transfer method is feed screw.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Table size 50 mm x 50 mm
Clamp method Clamp plate
Transfer mechanism Feed screw P=0.5 mm
Travel 0 to 10 mm
Lead of actuator 0.5 mm
Scale interval -
Minimum resolution 0.01 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy Straightness (horizontal and vertical) 0.003 mm
Allowable moment Yawing 150 N・cm, Pitching 100 N・cm, Rolling 160 N・cm
Moment rigidity Yawing rigidity 1.5 sec/N・cm, Pitching rigidity 3.0 sec/N・cm, Rolling rigidity 0.7 sec/N・cm
Parallelism 0.1 mm
Load capacity 29.3 N (3 kgf)
Weight 0.25 kg
Material / Surface treatment Stainless steel, Aluminum alloy (table base)/Black chromium oxide, Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M3, 4 screws
