Z Lift Stages

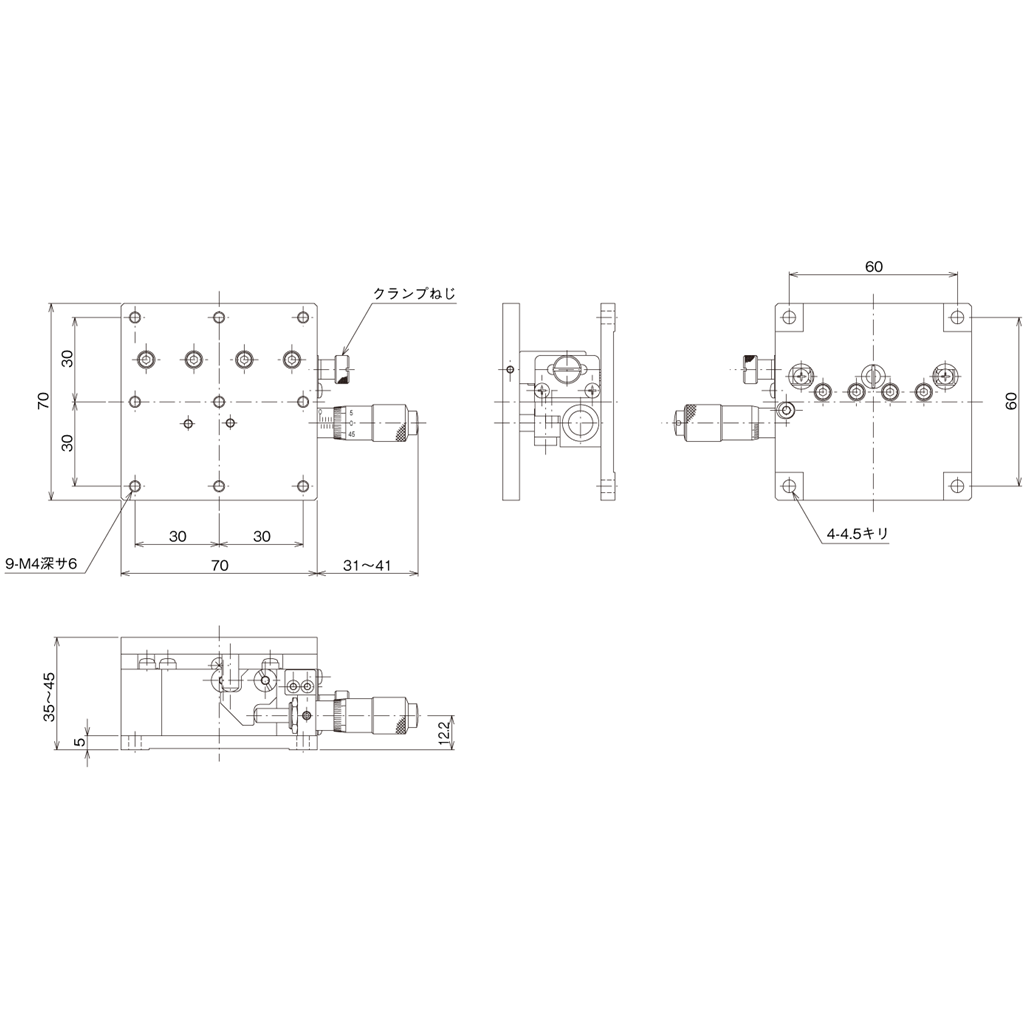

LV-7042-1

1
High-grade Z axis stage 70 x 70
Estimate separately
Travel 0 to 10 mm
Table size 70 mm x 70 mm
YESRoHS対応状況

Product documentation

Description

Z lift stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweightt.
Transfer method is standard micrometer head.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Table size 70 mm x 70 mm
Clamp method Clamp plate
Transfer mechanism CMH-13RM (Standard micrometer head)
Travel 0 to 10 mm
Lead of actuator 0.5 mm
Scale interval Micrometer head 0.01 mm
Minimum resolution 0.003 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy Straightness (horizontal and vertical) 0.005 mm
Allowable moment Yawing 150 N・cm, Pitching 100 N・cm, Rolling 160 N・cm
Moment rigidity Yawing rigidity 1.0 sec/N・cm, Pitching rigidity 2.5 sec/N・cm, Rolling rigidity 0.4 sec/N・cm
Parallelism 0.1 mm
Load capacity 29.3 N (3 kgf)
Weight 0.4 kg
Material / Surface treatment Stainless steel, Aluminum alloy (table base)/Black chromium oxide, Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
