Z Stages

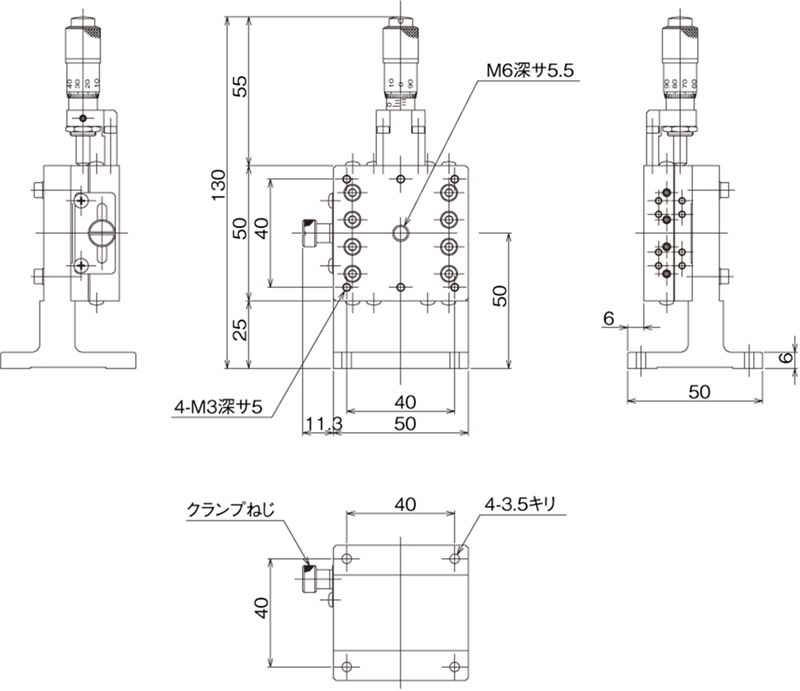

LZ-5047-C8

1
High-grade aluminum Z axis stage 50 x 50 (Standard type)
Estimate separately
Travel +/-3 mm
Table size 50 mm x 50 mm
YESRoHS対応状況

Product documentation

Description

Manual stage by using HG-VCR method for the moving guide and aluminum alloy as main material, achieving both rigidity and lightweight.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is fine pitch micrometer head.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Table size 50 mm x 50 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHS4-6.5FP (Fine pitch micrometer head)
Travel +/-3 mm
Lead of actuator 0.1 mm
Scale interval Micrometer head 0.002 mm
Minimum resolution 0.001 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.002 mm
Travel accuracy YP Yawing 20 sec, Pitching 30 sec
Moment rigidity Yawing rigidity 1.0 sec/N・cm, Pitching rigidity 0.3 sec/N・cm, Rolling rigidity 03 sec/N・cm
Perpendicularity 0.080 mm
Load capacity 19.6 N (2 kgf)
Weight 0.34 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M3, 4 screws
