Z Stages

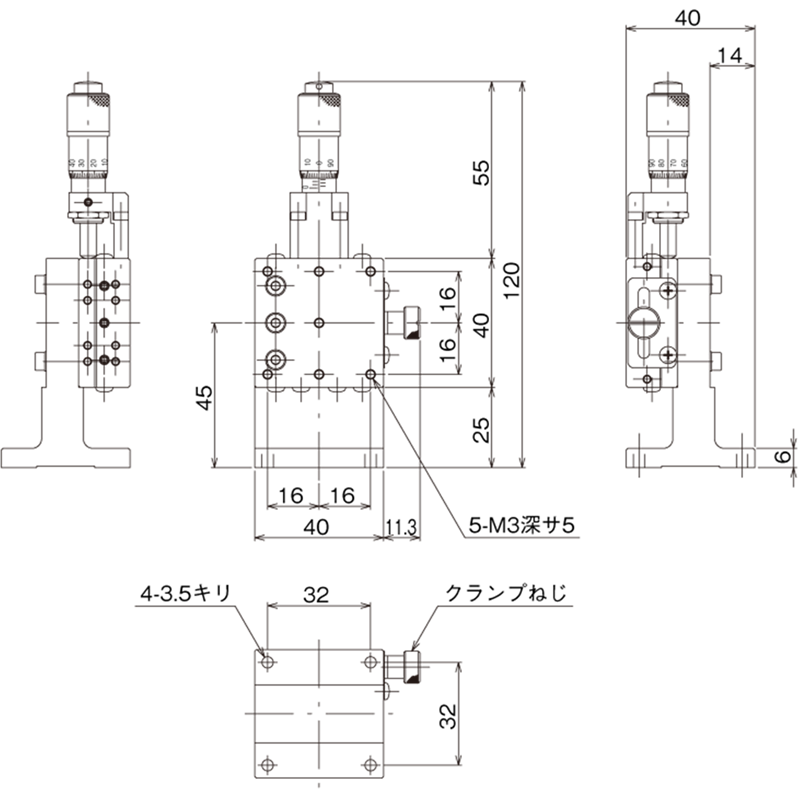

LZ-4042-CR8

1
High-grade Z axis stage 40 x 40 (Symmetric type)
Estimate separately
Travel +/-3 mm
Table size 40 mm x 40 mm
YESRoHS対応状況

Product documentation

Description

A high precision and high rigid manual stage by using HG-VCR method for the moving guide.
There are standard types and symmetrical types, and symmetrical configurations are also possible.
Transfer method is fine pitch micrometer head.
Clamp method is plate clamp.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Table size 40 mm x 40 mm
Clamp method Clamp plate
Mounting position Center
Transfer mechanism MHS4-6.5FP (Fine pitch micrometer head)
Travel +/-3 mm
Lead of actuator 0.1 mm
Scale interval Micrometer head 0.002 mm
Minimum resolution 0.001 mm
Guiding method HG-VCR (V-groove and cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.001 mm
Travel accuracy YP Yawing 15 sec, Pitching 25 sec
Allowable moment Yawing 500 N・cm, Pitching 500 N・cm, Rolling 500 N・cm
Moment rigidity Yawing rigidity 0.04 sec/N・cm, Pitching rigidity 0.04 sec/N・cm, Rolling rigidity 0.02 sec/N・cm
Perpendicularity 0.065 mm
Load capacity 49 N (5㎏f)
Weight 0.3㎏
Material / Surface treatment Stainless steel, Aaluminum alloy (Z bracket)/Black chromium oxide, Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M3, 4 screws
