Z Stages

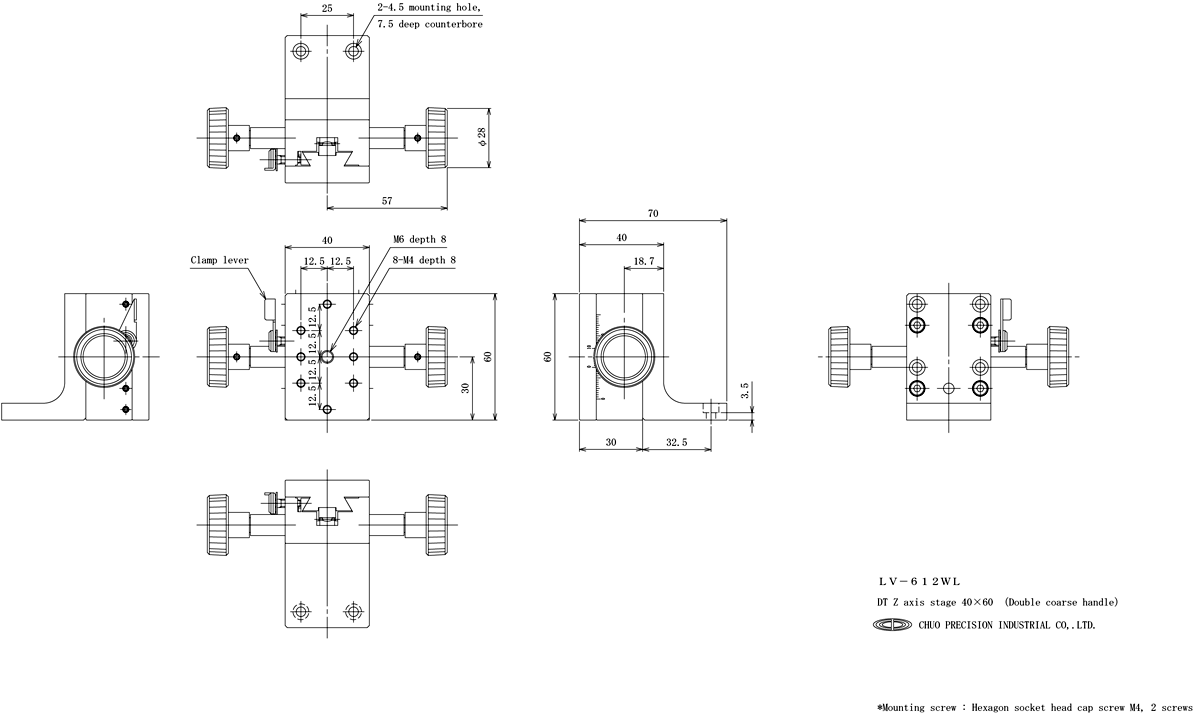

LV-612WL

1
DT Z axis stage 40 x 60 (Double coarse handle)
Estimate separately
Travel 15 mm
Table size 40 mm x 60 mm
YESRoHS対応状況

Product documentation

Description

Manual stage by using a dovetail groove (D-T method) for the moving guide.
A rack and pinion is used for the transfer method to achieve a long travel.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.
LV-612WL is a short Z bracket model.

Specifications

Direction of travel Z axis one direction
Table size 40 mm x 60 mm
Clamp method Lever type
Mounting position Double coarse handle
Transfer mechanism Rack and pinion
Travel 15 mm
Lead of actuator Approx. 18 mm
Scale interval 0.1 mm
Minimum resolution 0.1 mm
Guiding method Dovetail
Travel accuracy Straightness 0.03 mm
Load capacity 19.6 N (2 kgf)
Weight 0.35 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 2 screws
