Z Stages -CHUO PRECISION INDUSTRIAL CO.,LTD.-

RX-Z

1

Z axis stage screw type

Estimate separately

Travel	+/-7.5 mm
Table size	60 mm x 18 mm

YES

Product documentation

YES

▲PAGE TOP

Description

A dovetail groove (D-T method) is used for the moving guide and a feed screw is used for the transfer method.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a lever type clamp with high holding power.

▲PAGE TOP

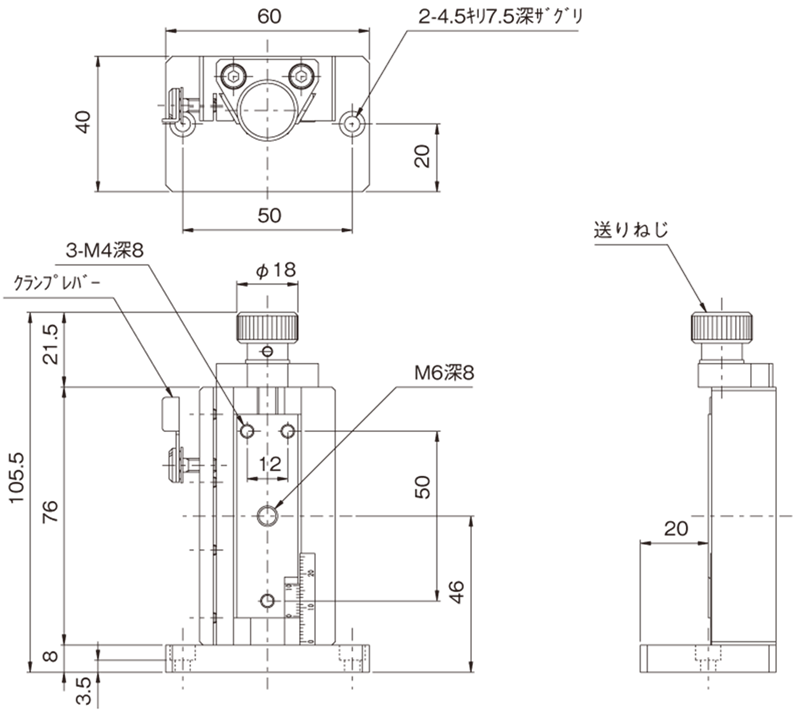

Specifications

Direction of travel	Z axis one direction
Table size	60 mm x 18 mm
Clamp method	Lever type
Mounting position	Side
Transfer mechanism	Feed screw P=0.5 mm
Travel	+/-7.5 mm
Lead of actuator	Approx. 0.5 mm
Scale interval	0.1 mm
Guiding method	Dovetail
Travel accuracy	Straightness (horizontal and vertical) 0.03 mm
Load capacity	9.8 N (1 kgf)
Weight	0.32 kg
Material / Surface treatment	Ｂrass (table), Aluminum alloy (base)/Chrome, Black Alumite
Standard accessories	Mounting screw : Hexagon socket head cap screw M4, 2 screws
