Rotary Stages

RS-111T-R

1
Transmission hole type rotary stage φ125 (Reverse type micro)
Estimate separately
Table size φ125 mm
YESRoHS対応状況

Product documentation

Description

Through hole type rotary (rotation) stage by using a sliding guide for moving guide.
Micrometer head position is reverse (facing left).
You can rotate the table 360 ??degrees by hand.
Fine movement is possible with a micrometer head after coarse movement clamping.
By clamping both coarse and fine movement, it can be fixed at any position.
Secure with M4 screws from the pit holes on the table surface. The back side can be fixed with M4 or M5 screws.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

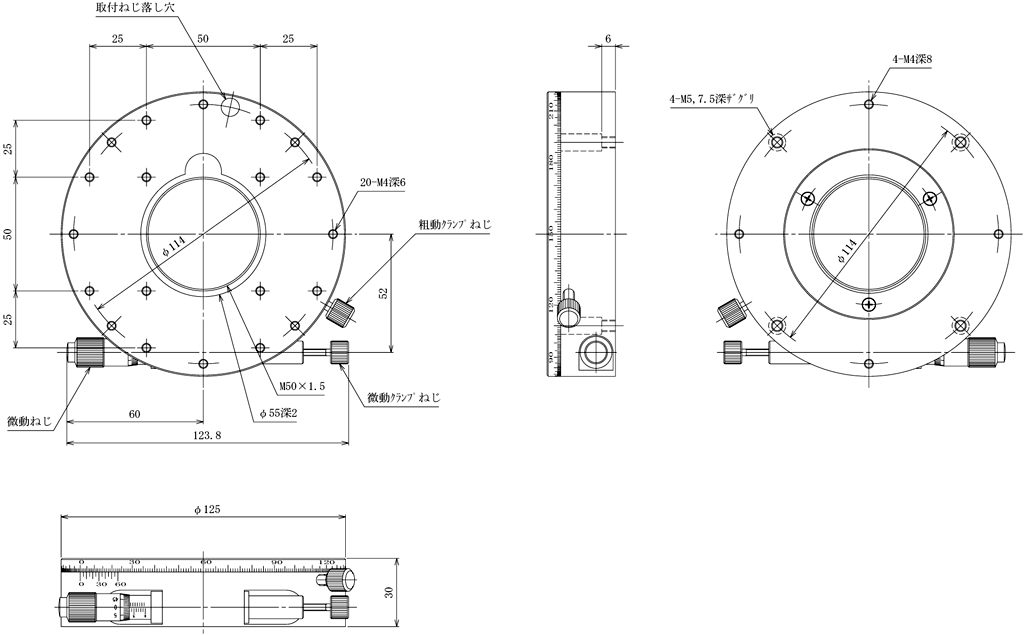

Specifications

Direction of travel Rotation
Table size φ125 mm
Clamp method Complex clamp
Mounting position Reverse position
Fine feed system CMH-13FM (Standard micrometer head)
Travel 360° (coarse), +/-5° (fine)
Lead of actuator Approx. 0.55°
Scale interval Vernier reading 5'/Micrometer head 0.01 mm (one division approx. 0.011°)
Minimum resolution 12″
Guiding method Sliding
Parallelism 0.05 mm
Circularity 0.05 mm
Deflection 0.03 mm
Load capacity 29.4 N (3 kgf)
Weight 1 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
