TD-913

1
Two axis slim goniometer stage 90 x 90
Estimate separately
Travel Upper axis : +/- 12°, lower axis : +/- 10°
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Two-axis tilt stage.
Combine one-axis tilt stages with different rotation center heights to form a two-axis tilt stage with the same rotation center.
Dovetail groove (D-T method) is used for the moving guide.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

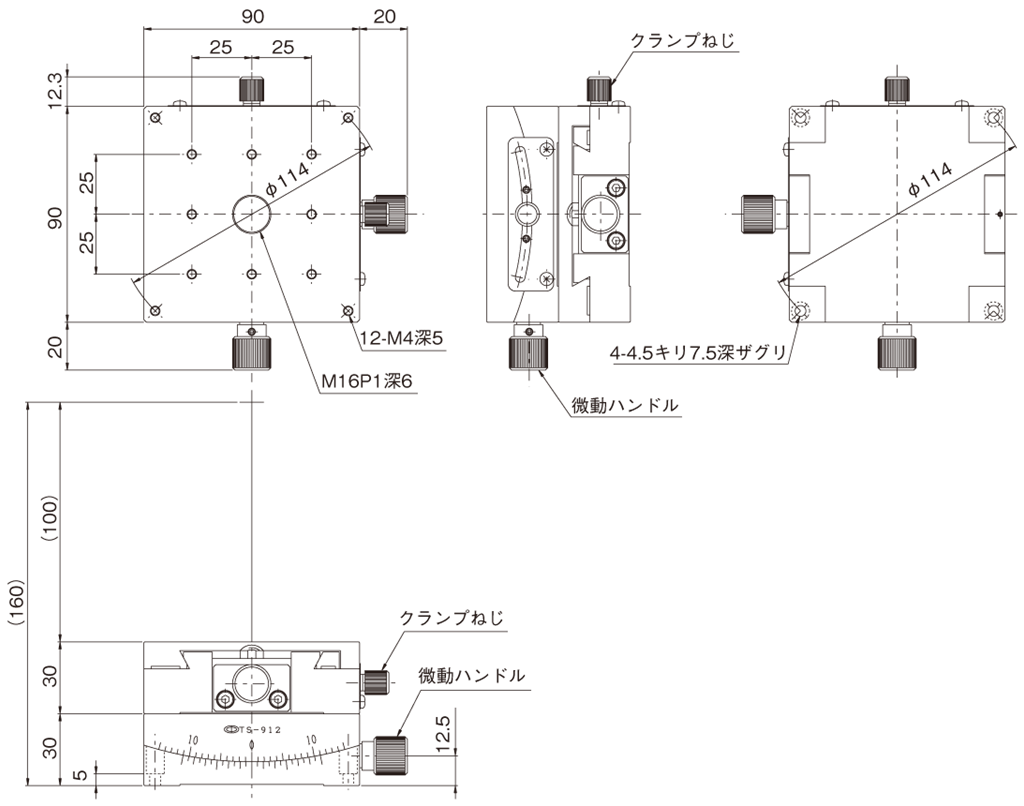

Specifications

Direction of travel Tilt, two axis
Table size 90 mm x 90 mm
Clamp method Clamp plate
Transfer mechanism Worm gear
Travel Upper axis : +/- 12°, lower axis : +/- 10°
Lead of actuator Upper axis approx. 1°17' 25", lower axis approx. 59'
Scale interval Vernier reading 5'
Guiding method Dovetail
Center of rotation 100 mm
Positioning accuracy of rotatation center -
Load capacity 68.6 N (7 kgf)
Weight 1.4 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
