TD-904

1

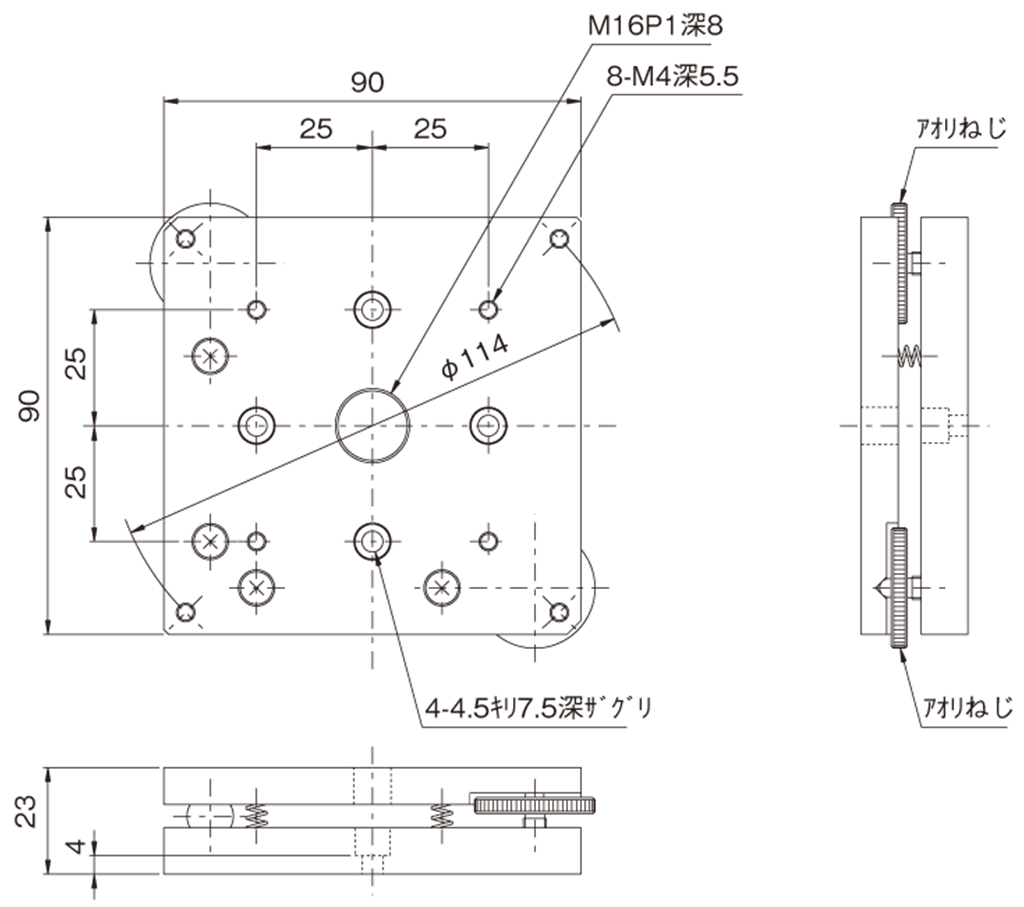

Two axis tilt stage 90 x 90
Estimate separately
Travel +/- 2°
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Two-axis inexpensive manual tilt stage with manual screws.
The ball between the upper stage and the base becomes the fulcrum of the tilt.
It is widely used for positioning applications such as cameras and sensors.
▲PAGE TOP

Specifications

Direction of travel Tilt, two axis
Table size 90 mm x 90 mm
Clamp method -
Transfer mechanism Manual screw
Travel +/- 2°
Lead of actuator Approx. 0°24'
Scale interval -
Load capacity 49 N (5 kgf)
Weight 0.4 kg
Material / Surface treatment Aluminum alloy/Black Alumite
Standard accessories Mounting screw : Hexagon socket head cap screw M4, 4 screws
▲PAGE TOP

Supplementation
