Description

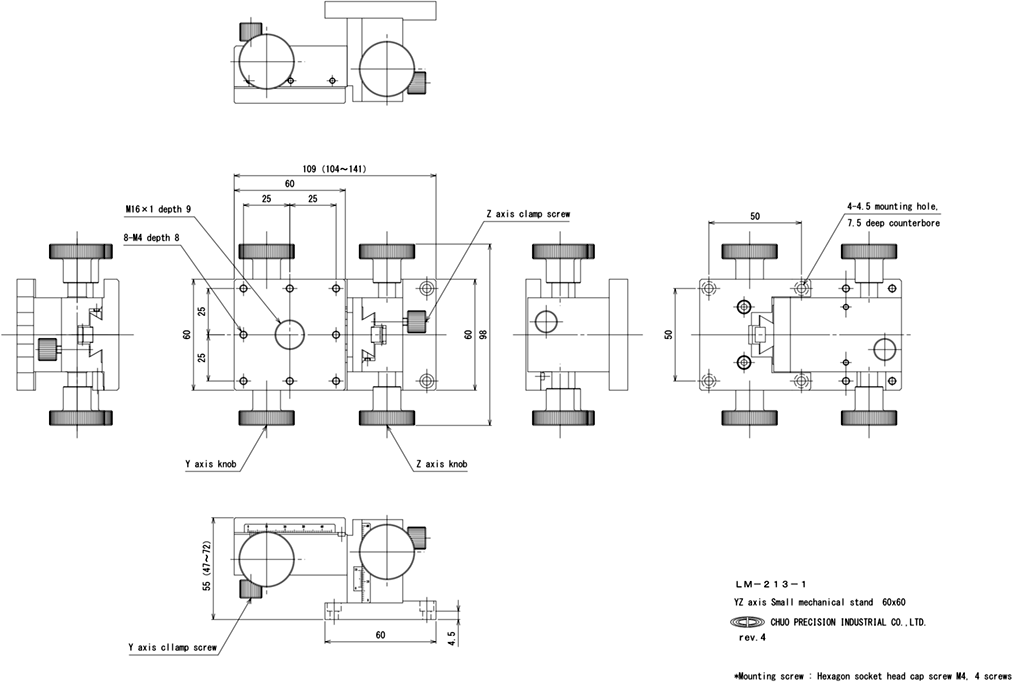

Manual stage by using a dovetail groove (D-T method) for the moving guide.
It is built low in height and has a low center of gravity.
A rack and pinion is used for the transfer method to achieve a long travel.
It is widely used for positioning applications such as cameras and sensors.
It can be fixed in any position using a clamp with high holding power.
