Absorption Plates

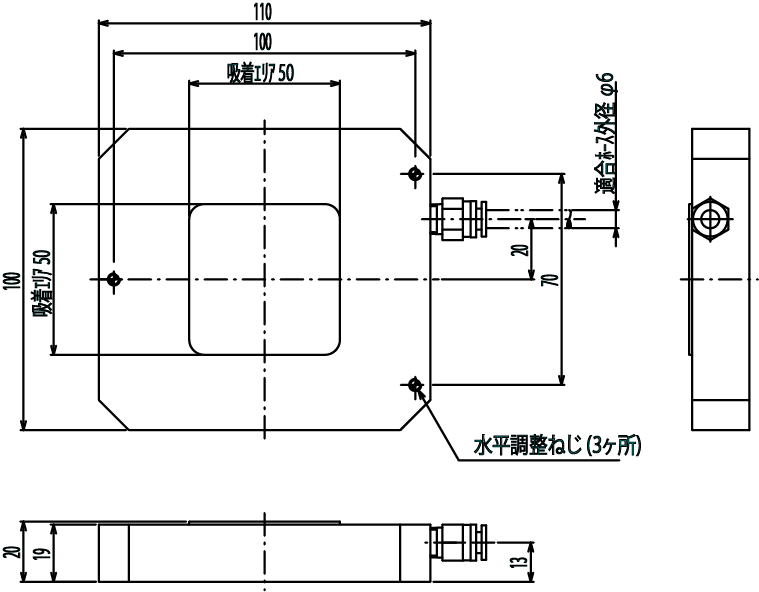

VA-MSS-50C

1
Adsorption plate
Estimate separately
Classification Porous ceramics Adsorption plate
Material / Surface treatment Porous ceramics、aluminum alloy/Black Anodize
YESRoHS対応状況

Product documentation

Description

By using the ceramic sintering method, there is no need to worry about dust generation from inside the porous ceramic, and it will not pollute the environment in which it is used.
Generates uniform suction force over the entire suction surface. Therefore, it is suitable for holding thin workpieces, films, and other workpieces that hole-punch vacuum chucks are not good at.
Even if a large surface plate is manufactured, porous ceramics has a lower specific gravity than aluminum (specific gravity: 1.6 to 1.8) and is lightweight, so it is useful for reducing the weight of equipment, etc.

Specifications

Classification Porous ceramics Adsorption plate
Flatness 0.005 mm
Adaptive product For MSS-50C
Weight 0.60 kg
Material / Surface treatment Porous ceramics、aluminum alloy/Black Anodize
Supplemental note ※ This product is made to order.

Example of use
