X Stages

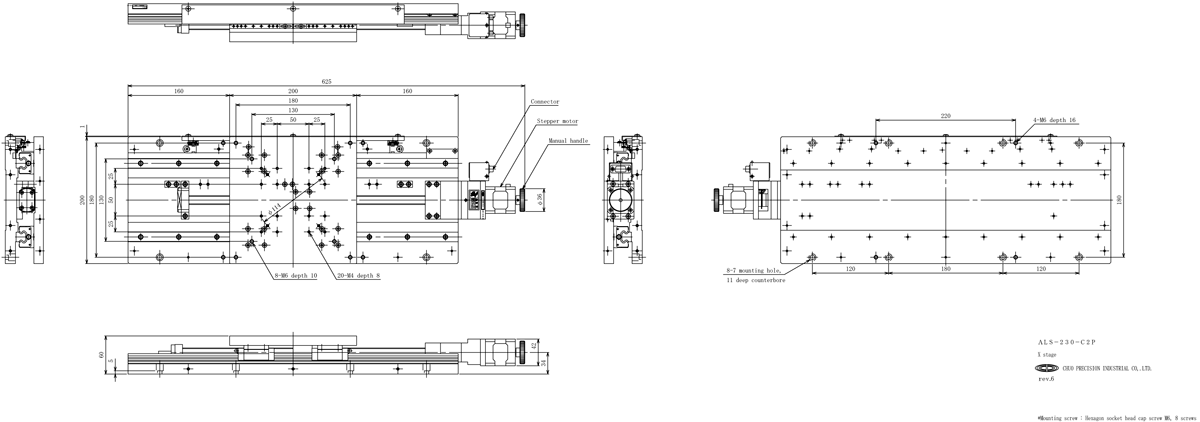

ALS-230-C2P

1
X stage
Estimate separately
Direction of travel X axis one direction
Travel +/-150 mm
Table size 200 mm x 200 mm
YESRoHS対応状況
ALS-230-C2P

Product documentation

Description

Long travel motorized stage by using ball way for moving guide.
It is used for various sensors and automatic positioning of workpieces.
Pre-HOME sensor and LIMIT sensor position can be adjusted.

Specifications

Direction of travel X axis one direction
Travel +/-150 mm
Table size 200 mm x 200 mm
Motor Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A/phase)
Resolution 0.004 mm
Feed screw Ball screw
Feed screw lead 2 mm
Guiding method Ball way
Travel accuracy HV Straightness (horizontal and vertical) 0.02 mm
Travel accuracy YP Yawing 35sec, Pitching 60sec
Positioning accuracy 0.03 mm
Repeatability +/-0.002 mm
Lost motion 0.002 mm
Moment rigidity 0.02sec/N*cm (Yaw), 0.02sec/N*cm (pitch), 0.02sec/N*cm (roll)
Load capacity 490 N (50 kgf)
Weight 10.5 kg
Maximum speed 20 mm/s (at 5,000 pps)
Material / Surface treatment Aluminum alloy/White alumite
HOME sensor Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-100mm
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-50 to +/-150mm
Compatible cable 0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M6 Hexagon socket head cap screws (8 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 14

Connection method - Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart

Motor specifications
