XY Stages

ALD-220-C2P

1
XY stage
Estimate separately
Direction of travel XY axis two directions
Travel +/-100 mm
Table size 200 mm x 200 mm
YESRoHS対応状況

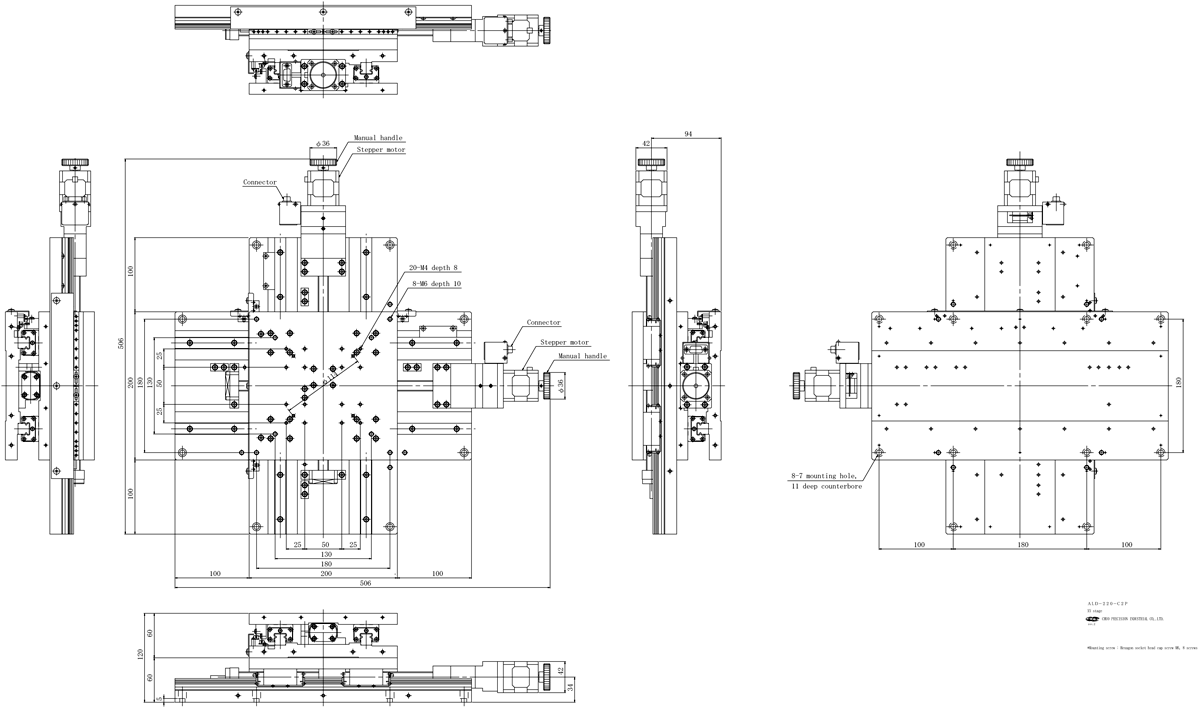

Product documentation

Description

Long travel motorized stage by using ball way for moving guide.
It is used for various sensors and automatic positioning of workpieces.
Pre-HOME sensor and LIMIT sensor position can be adjusted.

Specifications

Direction of travel XY axis two directions
Travel +/-100 mm
Table size 200 mm x 200 mm
Motor Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A /phase)
Resolution 0.004 mm
Feed screw Ball screw
Feed screw lead 2 mm
Guiding method Ball way
Travel accuracy HV Straightness (horizontal and vertical) 0.02 mm
Positioning accuracy 0.08 mm
Repeatability +/-0.002 mm
Lost motion 0.002 mm
XY Perpendicularity 0.04 mm
Moment rigidity 0.04sec/N*cm (Yaw), 0.04sec/N*cm (pitch), 0.04sec/N*cm (roll)
Load capacity 392 N (40 kgf)
Weight 18 kg
Maximum speed 20 mm/s (at 5,000 pps)
Material / Surface treatment Aluminum alloy/White alumite
HOME sensor Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-100mm
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-100mm
Compatible cable 0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M6 Hexagon socket head cap screws (8 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 14
