XY Stages

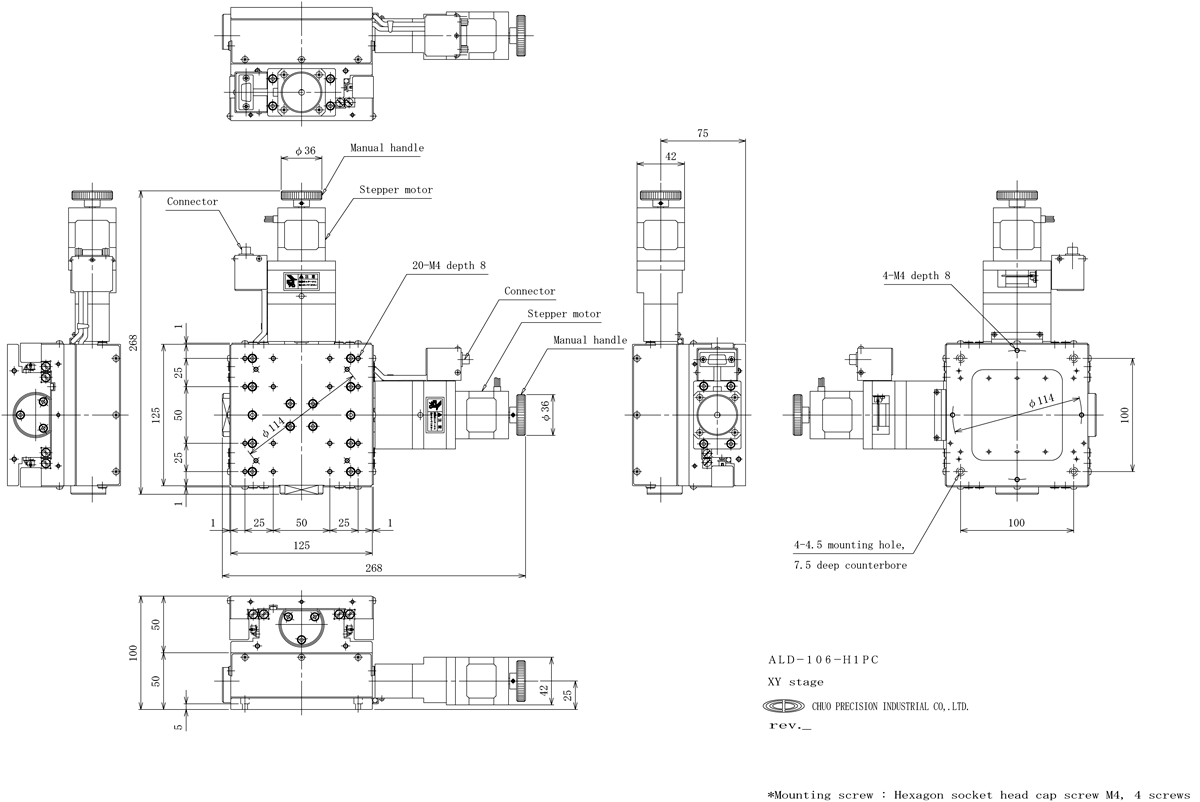

ALD-106-H1PC

1
XY stage
Estimate separately
Direction of travel XY axis two directions
Travel +/-30 mm
Table size 125 mm x 125 mm
YESRoHS対応状況

Product documentation

Description

Motorized stage with high precision by using V-groove and cross rollers moving guide.
Clean room grease is applied to the moving guide and ball screw.
It is used for various sensors and automatic positioning of workpieces.
Pre-HOME sensor and LIMIT sensor position can be adjusted.

Specifications

Direction of travel XY axis two directions
Travel +/-30 mm
Table size 125 mm x 125 mm
Motor Equivalent to PK545NBW (5-wire type pentagonal connection 0.75A /phase)
Resolution 0.002 mm
Feed screw Ball screw
Feed screw lead 1 mm
Guiding method V-groove and Cross roller
Travel accuracy HV Straightness (horizontal and vertical) 0.004 mm
Positioning accuracy 0.006 mm
Repeatability +/-0.0005 mm
Lost motion 0.001 mm
XY Perpendicularity 0.008 mm
Moment rigidity 0.2sec/N*cm (Yaw), 0.15sec/N*cm (pitch), 0.15sec/N*cm (roll)
Load capacity 343 N (35 kgf)
Weight 9.8 kg
Maximum speed 16 mm/s (at 8,000 pps)
Material / Surface treatment Steel/Kanigen plating (table), painting (base)
HOME sensor Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : +/-30mm
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*adjustable range : 0 to +/-30mm
Compatible cable 0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 36
