ALV-3005-HM

1

Z lift stage

Estimate separately

Direction of travel	Z axis one direction
Travel	0 to 5 mm
Table size	30 mm x 30 mm

Product documentation

▲PAGE TOP

Description

Compact motorized Z lift stage with 20 mm square 5-phase stepper motor.
V-groove and cross rollers are used for moving guide, allowing extremely high precision movement.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

Specifications

Direction of travel	Z axis one direction
Travel	0 to 5 mm
Table size	30 mm x 30 mm

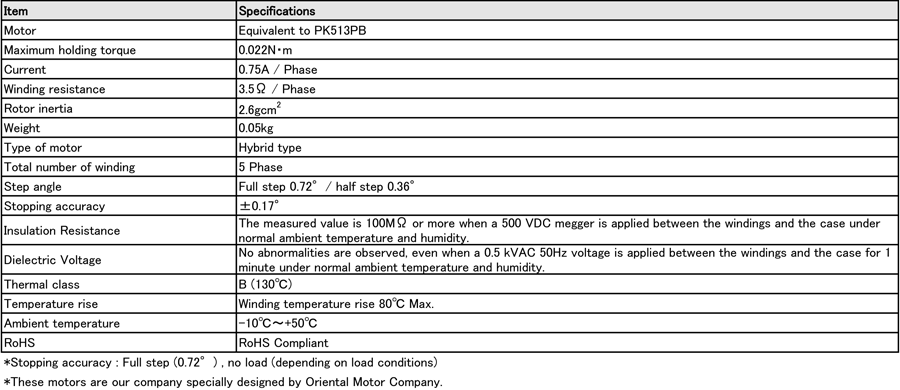

Motor	Equivalent to PK513PB (5-wire type pentagonal connection 0.35A/phase)
Resolution	0.001 mm
Feed screw lead	0.5 mm
Guiding method	V-groove and Cross roller
Travel accuracy HV	Straightness (horizontal and vertical) 0.01 mm
Positioning accuracy	0.020 mm
Repeatability	+/-0.002 mm
Lost motion	0.005 mm
Load capacity	9.8 N (1 kgf)
Weight	0.2 kg
Maximum speed	3 mm/s (at 3,000 pps)
Material / Surface treatment	Aluminum alloy/Black Alumite
HOME sensor	-
Pre-HOME sensor	-

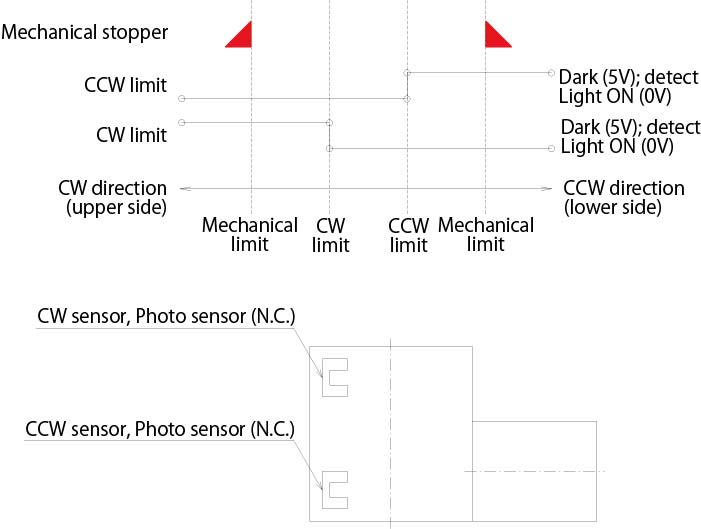

LIMIT sensor	Normally closed contact (Break contact, B contact) operation, Photo sensor *non-adjustable
Compatible cable	ACB-STS2, ACB-STC-D3 (be sold separately)

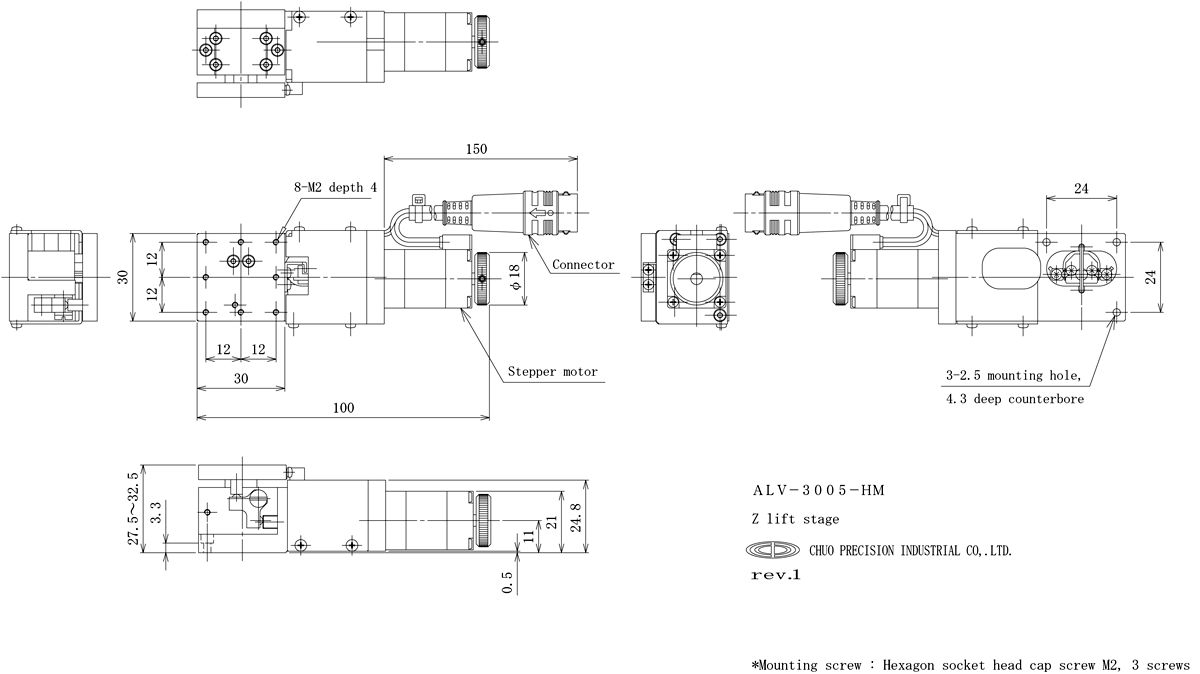

Standard accessories	Inspection certificate Mounting screw : M2 Hexagon socket head cap screws (3 pcs)
Supplemental note	*Dedicated parameter setting for QT-A (Parameter No.4): 52
