| Direction of travel |
Z axis one direction |
| Travel |
0 to 40 mm |
| Table size |
125 mm x 125 mm |
| Motor |
Equivalent to PKP564FN |
| Resolution |
0.001 mm |
| Feed screw |
Ball screw |
| Feed screw lead |
- |
| Guiding method |
V-groove and Cross roller |
| Travel accuracy HV |
Straightness (horizontal and vertical) 0.008 mm |
| Positioning accuracy |
0.03 mm |
| Repeatability |
+/-0.001 mm |
| Lost motion |
0.002 mm |
| Parallelism |
0.05 mm |
| Moment rigidity |
1sec/N*cm (Yaw), 1sec/N*cm (pitch), 0.05sec/N*cm (roll) |
| Load capacity |
98 N (10 kgf) |
| Weight |
5.9 kg |
| Maximum speed |
5 mm/s (at 5,000 pps) |
| Material / Surface treatment |
Steel/electroless nickel plating |

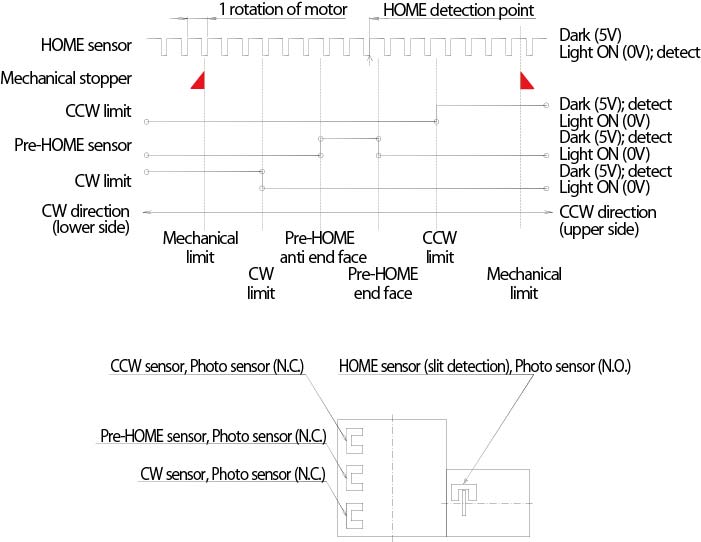

| HOME sensor |
Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable |
| Pre-HOME sensor |
Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : 0 to 40mm |
| LIMIT sensor |
Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : 0 to 40mm |

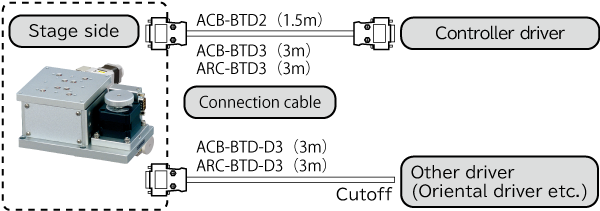

| Compatible cable |
0.75-A type and 1.2-A type (ACB-BTD2, ACB-BTD3, ACB-BTD-D3, ARC-BTD3, ARC-BTD-D3 be sold separately) |
| Standard accessories |
Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs) |
| Supplemental note |
*Dedicated parameter setting for QT-A (Parameter No.4): 14 |
