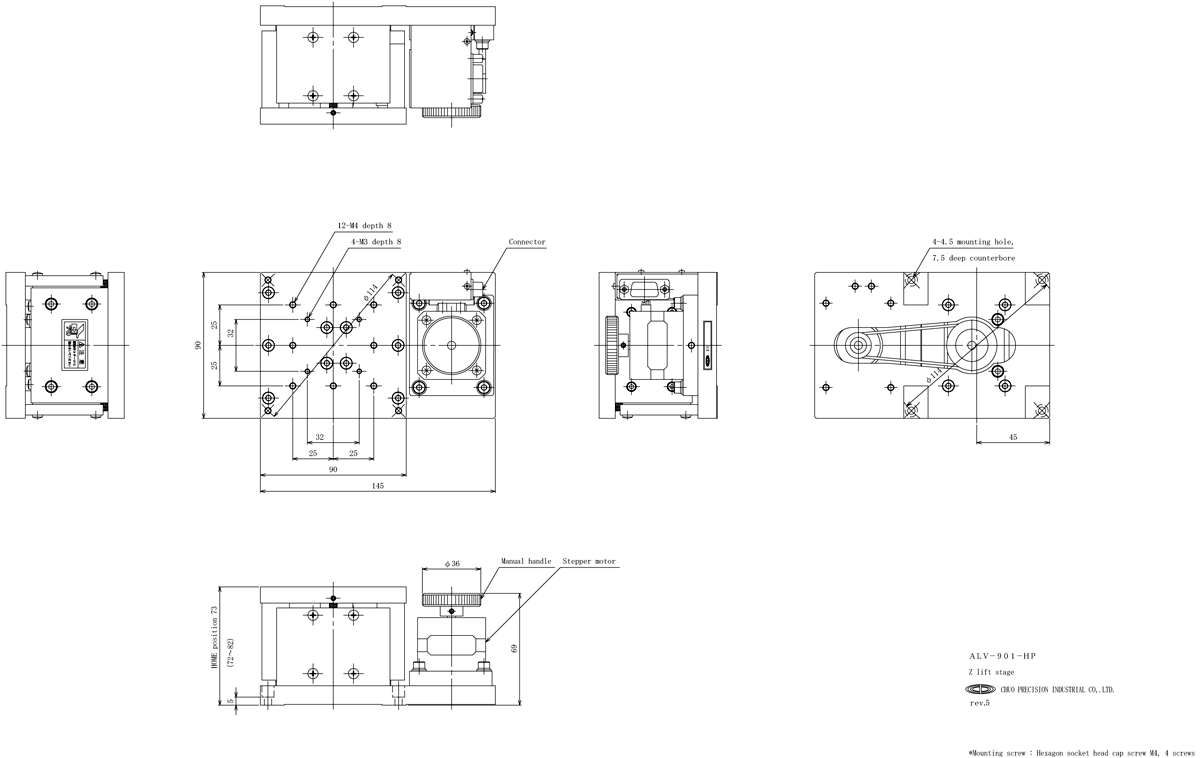

Z Lift Stages

ALV-901-HP

1
Z lift stage
Estimate separately
Direction of travel Z axis one direction
Travel 0 to 10 mm
Table size 90 mm x 90 mm
YESRoHS対応状況

Product documentation

Description

Z lift high precision motorized stage by using V-groove and cross rollers for moving guide.
Table size is 90 mm x 90 mm. Travel is 0 to 10 mm.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Travel 0 to 10 mm
Table size 90 mm x 90 mm
Motor Equivalent to PK543NBW (5-wire type pentagonal connection 0.75A/phase)
Resolution 0.001 mm
Feed screw lead 1 mm
Guiding method V-groove and Cross roller
Travel accuracy HV Straightness (horizontal and vertical) 0.005 mm
Positioning accuracy 0.008 mm
Repeatability +/-0.0008 mm
Lost motion 0.001 mm
Parallelism 0.08 mm
Moment rigidity 0.5sec/N*cm (Yaw), 0.5sec/N*cm (pitch), 0.03sec/N*cm (roll)
Load capacity 49 N (5kgf)
Weight 1.8 kg
Maximum speed 5 mm/s (at 5,000 pps)
Material / Surface treatment Aluminum alloy/White Alumite
HOME sensor Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : 0 to 10mm
LIMIT sensor Normally closed contact (Break contact, B contact) operation, Photo sensor
*adjustable range : 0 to 10mm
Compatible cable 0.75-A type (ACB-STD2, ACB-STD3, ACB-STD-D3, ARC-STD2, ARC-STD-D2, ARC-STD3 or ARC-STD-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (4 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 14
