Z Stages

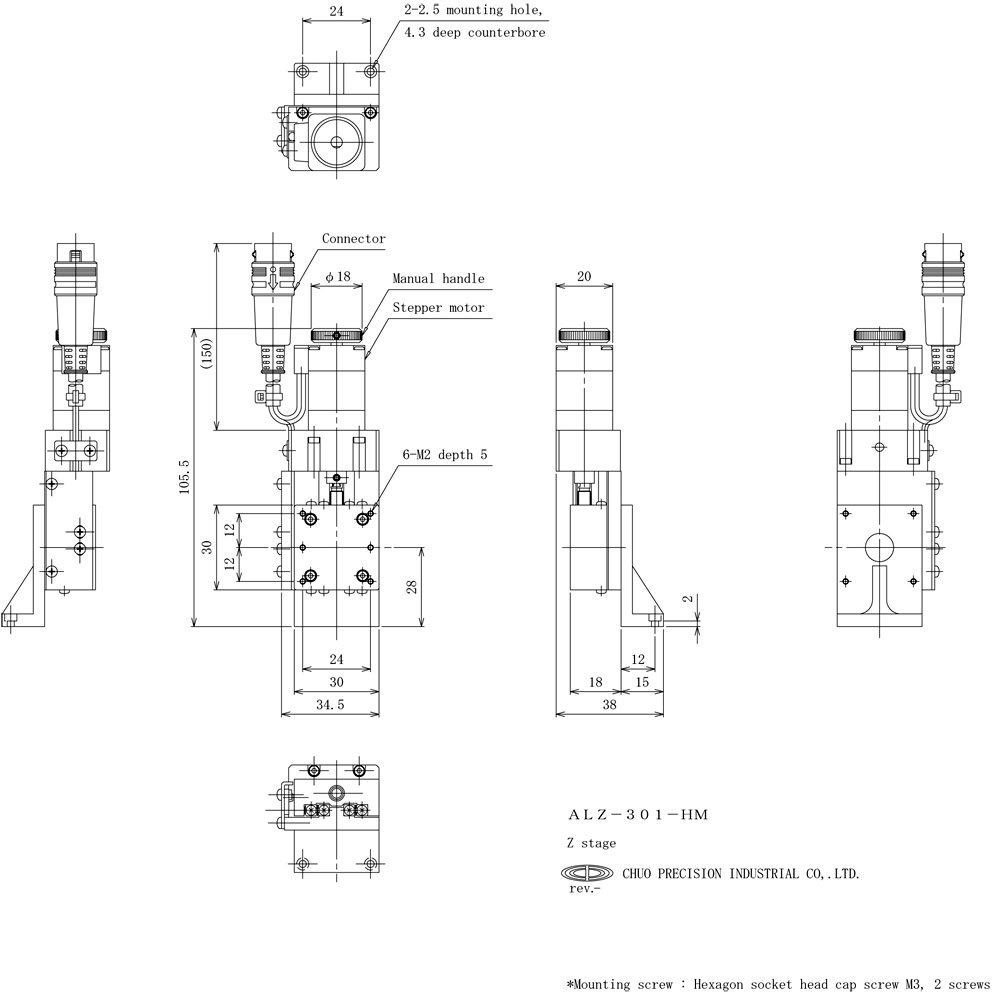

ALZ-301-HM

1
Z stage
Estimate separately
Direction of travel Z axis one direction
Travel +/-7.5 mm
Table size 30 mm x 30 mm
YESRoHS対応状況

Product documentation

Description

Compact motorized stage with 20 mm square 5-phase stepper motor.
15 mm travel type.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Travel +/-7.5 mm
Table size 30 mm x 30 mm
Motor Equivalent to PK513PB (5-wire type pentagonal connection 0.35A /phase)
Resolution 0.001 mm
Feed screw lead 0.5 mm
Guiding method V-groove and Cross rollers
Travel accuracy HV Straightness (horizontal and vertical) 0.008 mm
Positioning accuracy 0.015 mm
Repeatability +/-0.001 mm
Lost motion 0.005 mm
Load capacity 9.8 N (1 kgf)
Weight 0.18 kg
Maximum speed 5 mm/s (at 5,000 pps)
Material / Surface treatment Aluminum alloy/Black alumite
HOME sensor -
Pre-HOME sensor -
LIMIT sensor Normally open contact (make contact, A contact) operation, Hall IC
*non-adjustable
Compatible cable ACB-STS2, ACB-STC-D3 (be sold separately)
Standard accessories Inspection certificate
Mounting screw : M2 Hexagon socket head cap screws (2 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 51

Connection method- Cable, Controller and Driver -

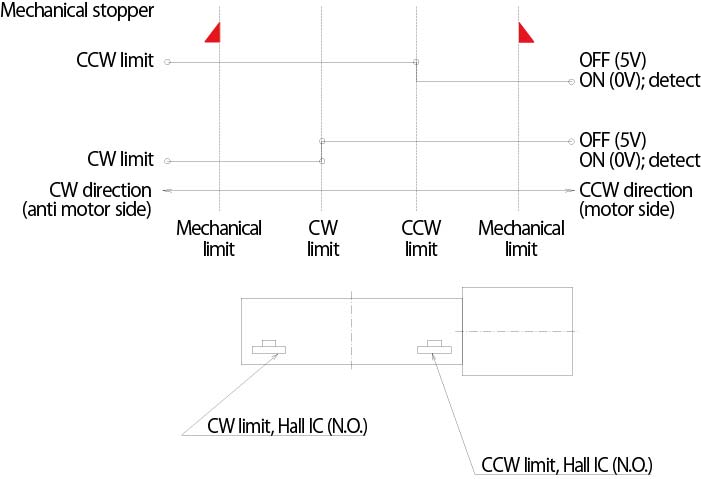

Operating principle of the Sensor and Timing Chart

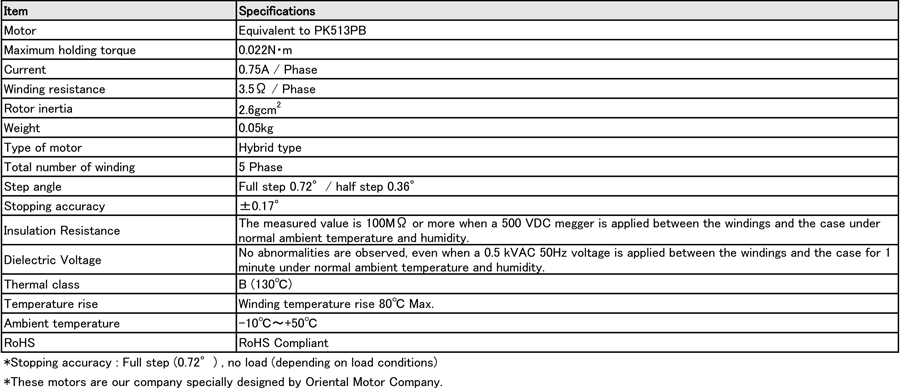

Motor specifications
