Z Stages

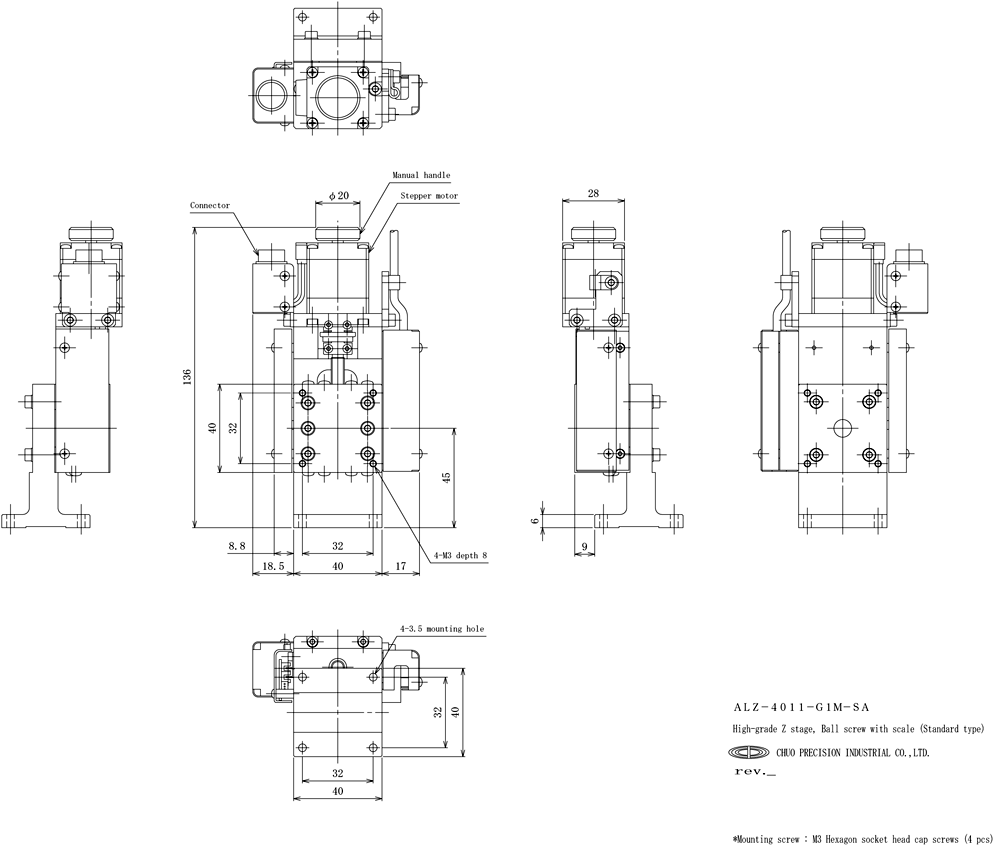

ALZ-4011-G1M-SA

1
High-grade Z stage, Ball screw with scale (Standard type)
Estimate separately
Direction of travel Z axis one direction
Travel +/-7.5 mm
Table size 40 mm x 40 mm

Product documentation

Description

Motorized stage with high precision and high rigidity by using V-groove and cross rollers (HG-VCR method).
A ball screw is used for the feed screw and with scale .
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Z axis one direction
Travel +/-7.5 mm
Table size 40 mm x 40 mm
Motor Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A /phase)
Resolution 0.002 mm
Feed screw Ball screw
Feed screw lead 1 mm
Guiding method HG-VCR (V-groove and Cross rollers)
Travel accuracy HV Straightness (horizontal and vertical) 0.002 mm
Travel accuracy YP Yawing 15sec, Pitching 25sec
Positioning accuracy 0.006 mm
Repeatability +/-0.0003 mm
Lost motion 0.001 mm
Moment rigidity 0.25sec/N*cm (Yaw), 0.3sec/N*cm (pitch), 0.3sec/N*cm (roll)
Load capacity 19.6 N (2 kgf)
Weight 0.45 kg
Maximum speed 10 mm/s (at 5,000 pps)
Material / Surface treatment Aluminum alloy/Black alumite
HOME sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor -
LIMIT sensor Normally closed contact (break contact, B contact) operation, Photo sensor
*non-adjustable
Compatible cable 0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately)
Scale model RENISHAW
Scale resolution 0.1μm
Scale accuracy +/-5μm/m
Standard accessories Inspection certificate
Mounting screw : M3 Hexagon socket head cap screws (4 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 36

Connection method- Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart

Motor specifications
