ARS-336-HM

1

Rotary stage

Estimate separately

Direction of travel	Rotation
Travel	360°
Table size	φ30 mm

YES

Product documentation

YES

▲PAGE TOP

Description

Compact motorized stage with 20mm square 5-phase stepper motor.
Ball bearings are used for moving guide, allowing extremely high precision movement.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

▲PAGE TOP

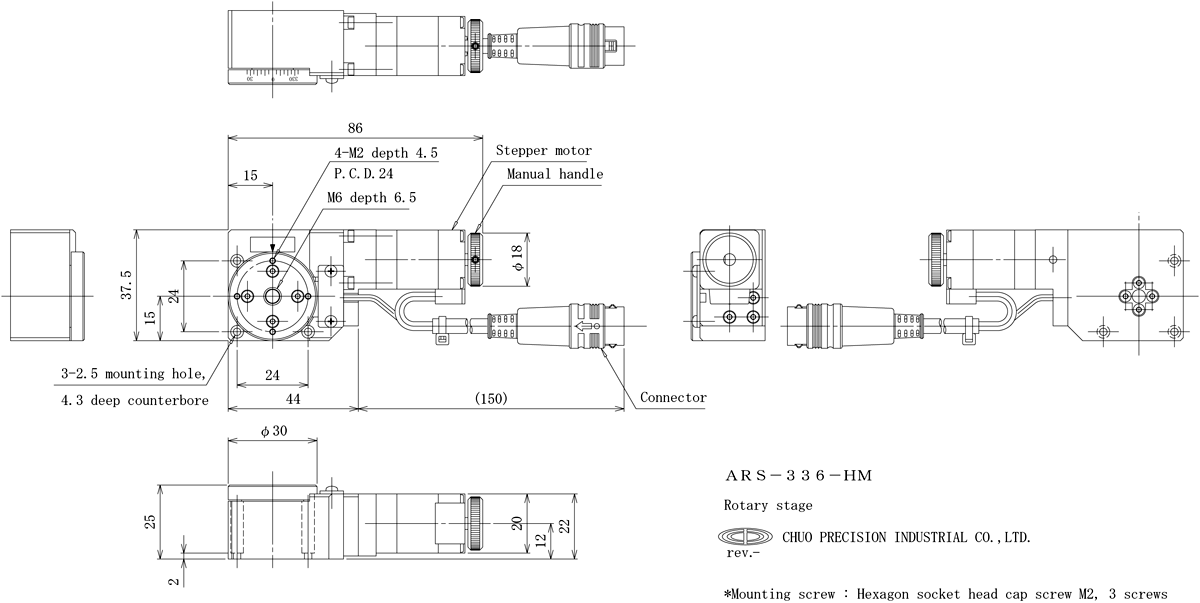

Specifications

Direction of travel	Rotation
Travel	360°
Table size	φ30 mm

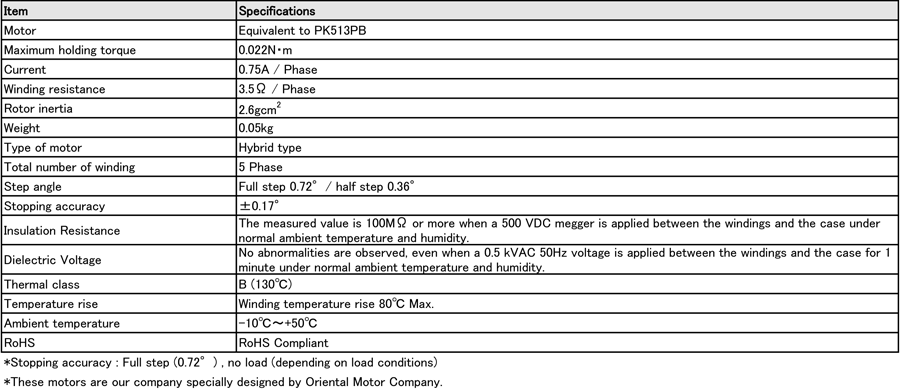

Motor	Equivalent to PK513PB (5-wire type pentagonal connection 0.35A/phase)
Resolution	0.015°
Guiding method	Ball bearings
Positioning accuracy	0.18°
Repeatability	+/-0.003°
Runout	0.02 mm
Deflection	0.06 mm
Lost motion	0.02°
Parallelism	0.075 mm
Load capacity	19.6 N (2 kgf)
Weight	0.18 kg
Maximum speed	75°/s (5,000 pps)
Material / Surface treatment	Aluminum alloy/Black Alumite

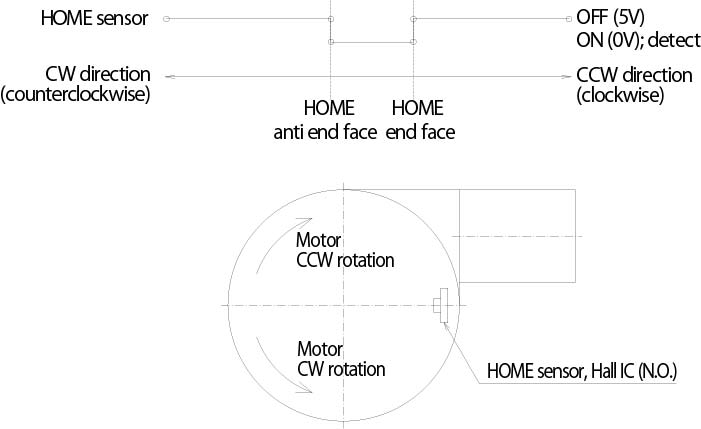

HOME sensor	Normally open contact (make contact, A contact) operation, Hall IC *non-adjustable
Pre-HOME sensor	-
LIMIT sensor	-

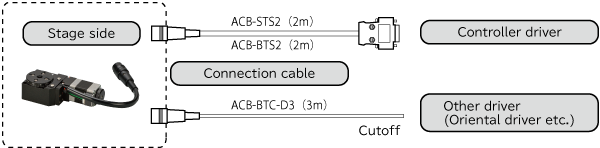

Compatible cable	ACB-STS2, ACB-STC-D3 (be sold separately)
Standard accessories	Inspection certificate Mounting screw : M2 Hexagon socket head cap screws (3 pcs)
Supplemental note	*Dedicated parameter setting for QT-A (Parameter No.4): 31
