Rotary Stages

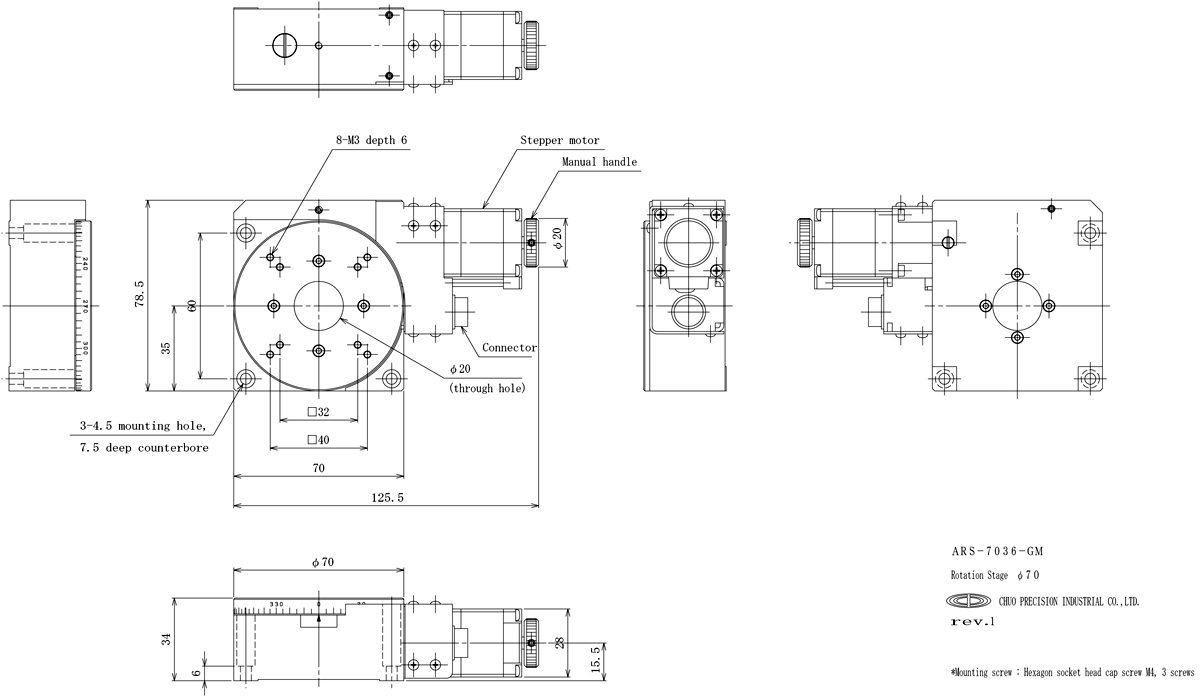

ARS-7036-GM

1
Rotary stage
Estimate separately
Direction of travel Rotation
Travel 360°
Table size φ70 mm
YESRoHS対応状況

Product documentation

Description

Motorized rotary (rotation) stage with ball bearings guide.
The through hole in the the center can be used as a transmission hole.
It is widely used for precision positioning applications such as cameras, sensors, and workpieces.

Specifications

Direction of travel Rotation
Travel 360°
Table size φ70 mm
Motor Equivalent to PK523HPB (5-wire type pentagonal connection 0.75A/phase)
Resolution 0.01°
Guiding method Ball bearings
Positioning accuracy 0.05°
Repeatability +/-0.003°
Runout 0.01 mm
Deflection 0.06 mm
Lost motion 0.02°
Parallelism 0.075 mm
Load capacity 39.2 N (4 kgf)
Weight 0.7 kg
Maximum speed 50°/s (5,000 pps)
Material / Surface treatment Aluminum alloy/Black Alumite
HOME sensor Normally open contact (make contact, A contact) operation, Photo sensor
*non-adjustable
Pre-HOME sensor -
LIMIT sensor -
Compatible cable 0.75-B type (ACB-STM2, ACB-STM3, ACB-STM-D3, ARC-STM2, ARC-STM-D2, ARC-STM3 or ARC-STM-D3, be sold separately)
Standard accessories Inspection certificate
Mounting screw : M4 Hexagon socket head cap screws (3 pcs)
Supplemental note *Dedicated parameter setting for QT-A (Parameter No.4): 31

Connection method- Cable, Controller and Driver -

Operating principle of the Sensor and Timing Chart

Motor specifications
