Actuators

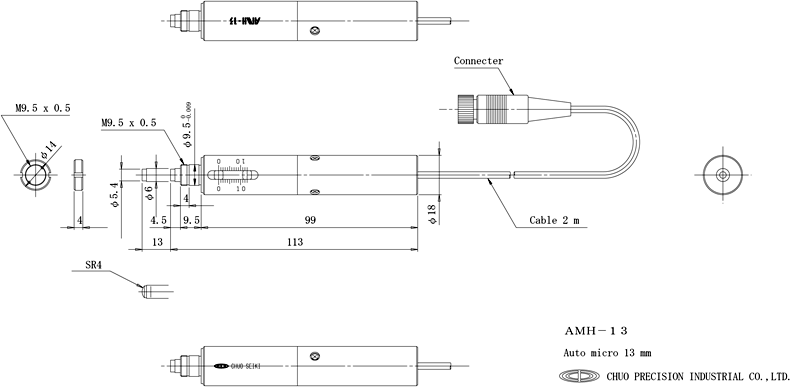

AMH-13

1
Auto micro 13mm
Estimate separately
Travel 0 to 13 mm
YESRoHS対応状況

Product documentation

Description

Auto Micro is an electric (motorized) micrometer head.
It is extremely compact in both diameter and length.
It is compatible with the micrometer heads used in our manual stages.
You can choose between a flat tip and a spherical tip by replacing the spindle cap.
The operating temperature is 20±10℃.

Specifications

Travel 0 to 13 mm
Motor Coreless motor drive gear
Thrust 68.6 N (7 kgf)
Mounting diameter φ9.5 0-0.009 mm
Weight 0.13 kg
Maximum speed 1 mm/s
Cable length 2 m
