Controllers

QT-AC

1
Dedicated AC adapter QT
Estimate separately
Type Controller Options
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

QT-AC is dedicated AC adapter for QT-BDL1 and QT-BK.
▲PAGE TOP

Specifications

Type Controller Options
Input power supply AC90～240V 50/60Hz
Ambient Temperature and humidity 10～40℃/20～80％（non-condensing）

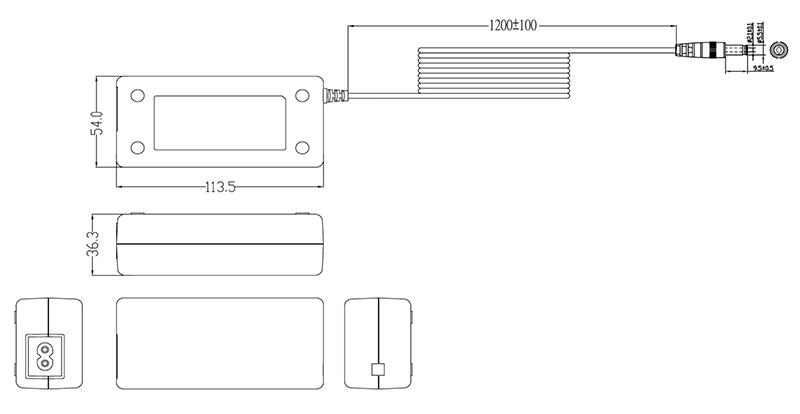

Outside dimension W54 mm × D113.5 mm × H36.3 mm（Excluding protrusions）
Weight 0.23 kg (AC cable: 0.07 kg)
Applicable models QT-BDL1, QT-BK, QT-ADL1, QT-ADL1-35
Standard accessories AC cable (approx. 1.8 m)
▲PAGE TOP

Connection method - Cable, Controller and Driver -

Specification
