Type |
Controller Options |
Ambient Temperature and humidity |
Ambient temperature -20 ~ +70 ℃, -40 ~ +70 ℃ / 35 ~ 85% RH Storage Temperature |

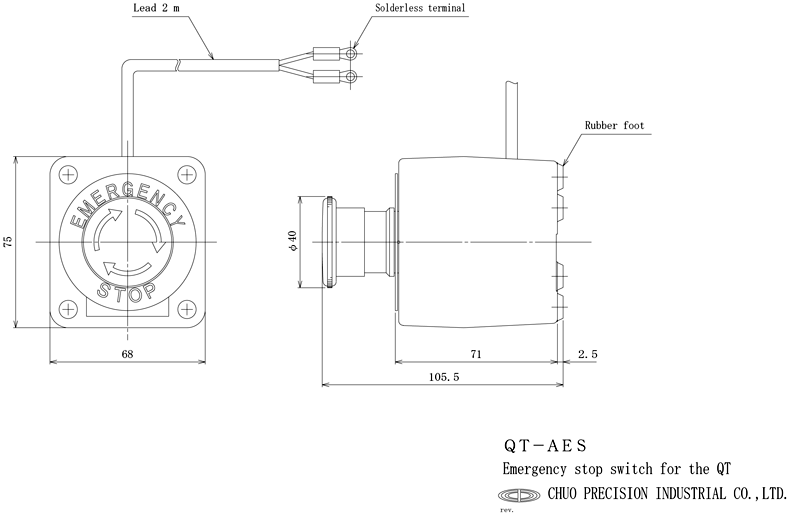

Outside dimension |
W68mm×D75mm×H105.5mm(Excluding protrusions) |
Weight |
0.3kg |
Insulation resistance |
100MΩ以上(DC500V メガにて) |
Withstand voltage |
AC2, 500V, 50/60Hz, 1min (between the same terminal, between each terminal and ground) |
Vibration malfunction* |
10~55HzDouble amplitude1.5mm(1ms within 1ms) |
Function switch |
(A22E-M-01, manufactured by OMRON) with safety lock feature Emergency Stop Switch |
Cable length |
lead 2m |
Applicable models |
QT-BDL1, QT-BMM2, QT-BMH2, QT-BMM3, QT-ADL1, QT-ADL1-35, QT-ADM2,QT-ADM2-35, QT-AMH2A、QT-AMH2A-35, QT-ADM3, QT-ADM3-35, QT-AMM3 |
Supplemental note |
※1 freezing, non-condensing.
※2 malfunction within 1ms. |
