QT-AMH2A

3
High performance 2 axis controller driver
Discontinued
Number of controlled axes 2 axis
Type Controller body
YESRoHS対応状況

Product documentation

Description

2-axis controller driver AC90 ~ 240V 50/60Hz Power supply voltage (phase micro-step 0.75A /).
Driving with reduced vibration at low speeds without changing the configuration of the controller by the smooth drive function is possible.
Jog operation by QT-AK box, step movement, teaching behavior, such as one-touch speed switching is possible.
Storing a program created by the application of dedicated software supplied as standard, automatic operation of a single controller.
To the liquid crystal display operation unit box (mm, μm, etc. Simple display decimal degree symbol, the minutes and seconds time) is possible.
As an interface for PC, equipped with standard RS-232C, Ethernet (LAN).
In conjunction with the QT-AT, other equipment by the general-purpose input and output various signals input and output, the output drive pulse, the output / stop move, any step pulse output, built-CH program selection input, pulse input drive, such as input, start moving connection is possible with.
Independent control of each axis, linear interpolation between the two axes move is possible.
The drive is equipped with a standard feature from the S-shaped acceleration and deceleration smooth trapezoidal drive is possible.
Equipped with an electromagnetic brake control function. Electromagnetic brake control is possible by combination of (sold separately) QT-BK.

Specifications

Number of controlled axes 2 axis
Type Controller body
Input power supply AC90~240V 50/60Hz
Ambient Temperature and humidity 10~40℃/20~80%(non-condensing)

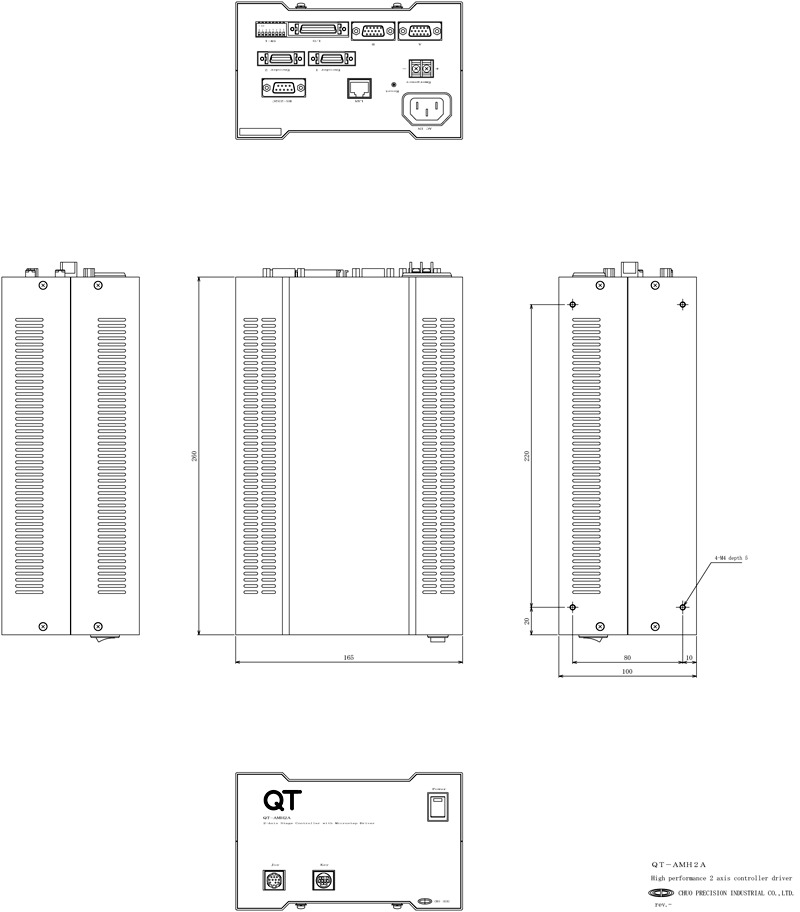

Outside dimension W165×D260×H100㎜(Excluding protrusions)
Weight 3.5㎏
Cable length Power cable approx2m
Applicable models CHUO's Motorized stages (0.75A/pahse model)
Supplemental note *CHUO's Motorized stage dedicated parameter setting is here (ZIP file download, written by Japanese).
*QT-A LAN setting guide is here (PDF download, written by Japanese).
*0.75A/phase models can be used (QT-BK is required for Z stage with electromagnetic brake, QT-BK is sold separately).

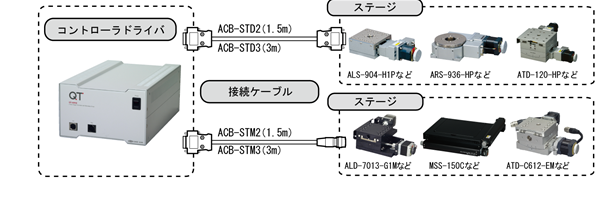

Connection method - Cable, Controller and Driver -

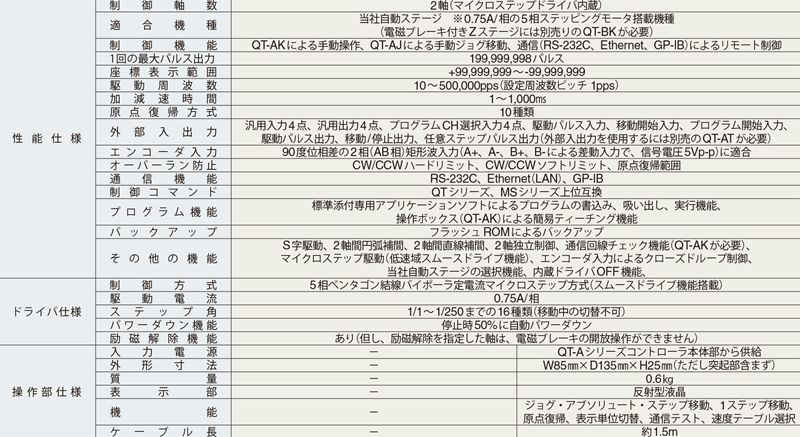

Specification
