High performance 2 axis controller driver
Estimate separately
Number of controlled axes 2 axis
Type Controller body
YESRoHS対応状況

Product documentation

Description

Two-axis controller driver with a power supply voltage AC90 to 240V 50/60Hz.
The drive current is automatically set in our motorized stage by the motor drive current automatic setting function.This makes it possible to connect stages with different drive current values ??for each axis.
Equipped with a low vibration microstep driver. Achieves lower vibration drive than conventional microstep drivers.
The micro step drive suppresses vibration at low speeds, and the step angle can be divided up to 1/250.
By connecting a stage with a scale, closed-loop operation is possible with encoder input.
Jog movement, step movement, teaching operation, one-touch speed switching, etc. are possible with the operation box QT-AK.
The program created by the "QT-EDIT" is stored, and automatic operation of only the controller driver is possible."QT-EDIT" is dedicated application software attached as standard.
The unit display of the operation box (mm, μm, decimal degree, degrees, minutes, and seconds can be simply displayed with symbols, etc.) is possible.
RS-232C and USB (TYPE-B) are installed as standard as an interface for PC.
By using QT-AT (sold separately) together, it can be connected to other devices such as general-purpose input/output terminal, drive pulse output, move/stop output, arbitrary step pulse output, drive pulse input, move start input, and built-in program CH selection input, etc.
Independent control of each axis, linear interpolation movement between two axes, and arc interpolation movement between two axes are possible.
The S-shaped drive function that enables smooth acceleration and deceleration by trapezoidal drive is installed as standard.
Equipped with an electromagnetic brake control function. Electromagnetic brake control is possible by combination of QT-BK (sold separately).

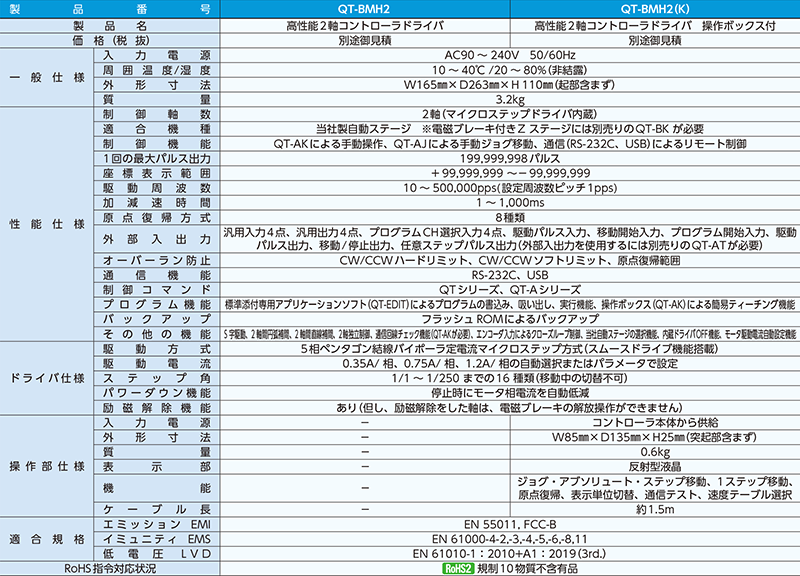

Specifications

Number of controlled axes 2 axis
Type Controller body
Input power supply AC90~240V 50/60Hz
Ambient Temperature and humidity 10~40℃/20~80%(non-condensing)

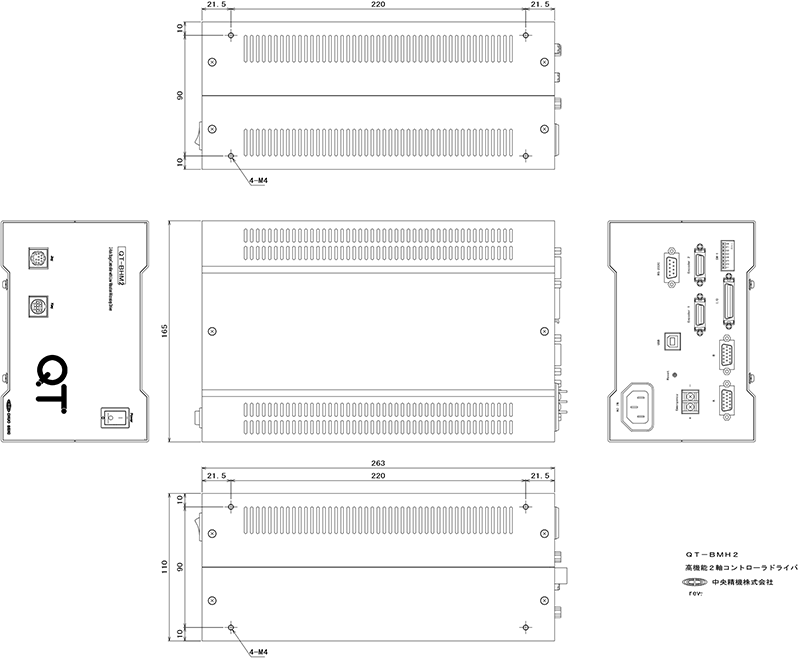

Outside dimension W165×D263×H110㎜(Excluding protrusions)
Weight 3.2㎏
Cable length Power cable approx2m
Applicable models Chuo's Motorized stage
Standard accessories Instruction manual, Rubber foot 4 pieces, CD-ROM
*Instruction manual is stored on the CD-ROM
Supplemental note *Use ACB-BTD2/BTD3, ARC-BTD2/BTD3, ACB-BTM2/BTM3 or ARC-BTM2/BTM3 for 0.75A/phase and 1.2A/phase models
*Use ACB-BTS2 for 0.35A/phase models.
*Z stage with electromagnetic brake is required for QT-BK, sold separately

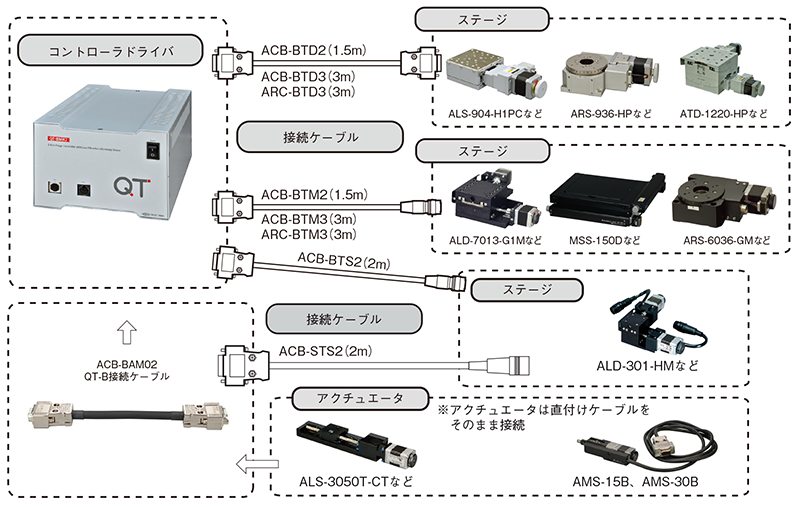

Connection method - Cable, Controller and Driver -

Specification
