Auto-focus Microscopes

AF-RF

1
Autofocus Microscopes (AF drive insertion type)
Estimate separately

Product documentation

Description

●Easy to turn on a commercial microscope and can be used as an autofocus microscope.

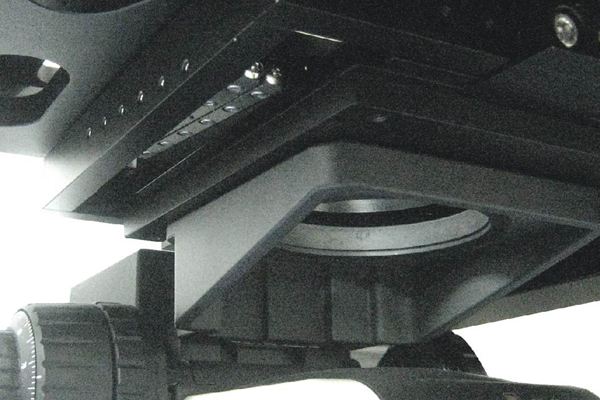

●Attaching AF-261ZA to the microscope allows for high speed tracking.
●Combining a our automatic XY stagev(MSS series) and AF Z drive gives you the automatic XYZ system.
●Enables to autofocus on transparent surfaces such as glass and plastics.

*Autofocus catalog (Published August 2020, both English and Japanese) is download from here. PDF download, approx. 9 megabytes. (Opens in a new window).

Specifications

Objective lenses or Microscopes Nikon, Olympus
Driving unit Model AF-261ZA
Driving unit Limiting resolution 0.039 μm
Driving unit Travel 2 mm
Focusing Line sensor method
Search range ±250 μm (objective lens 20×)
Search time 0.3 sec (in the above conditions)
AF accuracy Depth of Focus x 1/4
Accessory Robot cable for sensor, Robot cable for pattern, Robot cable for motor 3 m each (standard). *Maximum cable length 15 m.
Target sample Metal surfaces, glass surface and low-reflactance surfaces such as paper or filters.

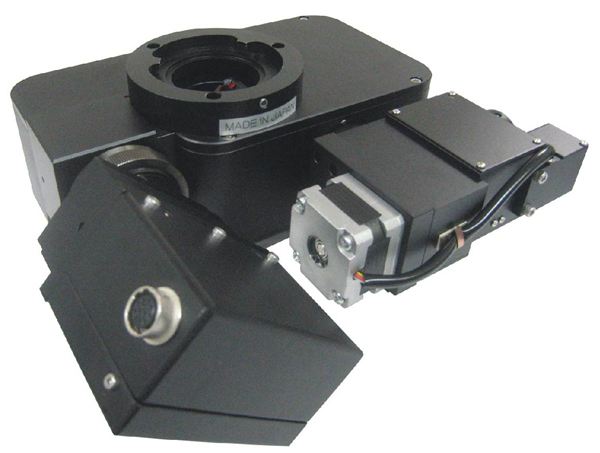

Description photos

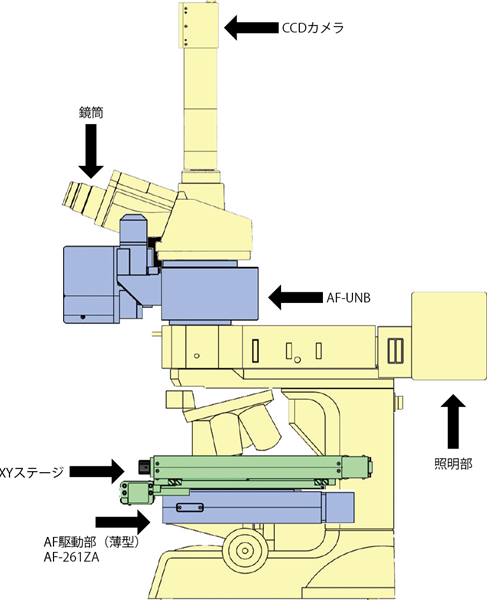

Explanatory diagram

Supplementation
