By electrifying the microscope's fine focus handle, motorized control and remote control are possible.
Since it uses a 0.75A/phase stepper motor, our QT-A or QT-B series controller drivers can be used.
Customization of cable length is also possible.

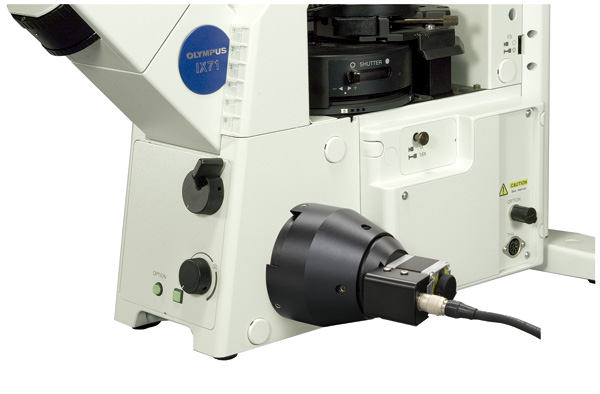

It can be attached to the torque adjustment ring on one side of the microscope focus handle.
Please use the MSS-FM1 in combination with our "QT-A or QT-B series controller drivers" (0.75A/phase, sold separately).
It can be installed without any additional work on the microscope body.
Manual focusing is also possible using the manual operation handle.

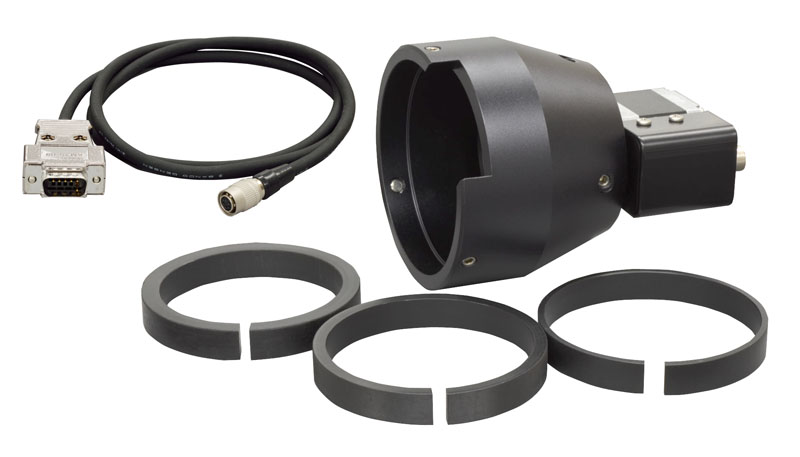

A cable to connect MSS-FM1 and the controller is included.
Three types of microscope adapters (inner diameter 58.5 mm/62 mm/66.3 mm) are included.
