Mirror Holders

MHA-S25

1
Kinematic square mirror holder
Estimate separately
Classification Kinematic square mirror holder
Shape conforming element 25×25mm,25.4×25.4mm(1×1″)
YESRoHS対応状況

Product documentation

Description

This is two control screw kinematic mirror holder for circular mirror.

Specifications

Classification Kinematic square mirror holder
Shape conforming element 25×25mm,25.4×25.4mm(1×1″)
Thickness conforming element 0 to 2mm
The tilt screw Resource M6P0.25
Adjustable range ±6°
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.14kg
Supplemental note ※Three screw version is available.

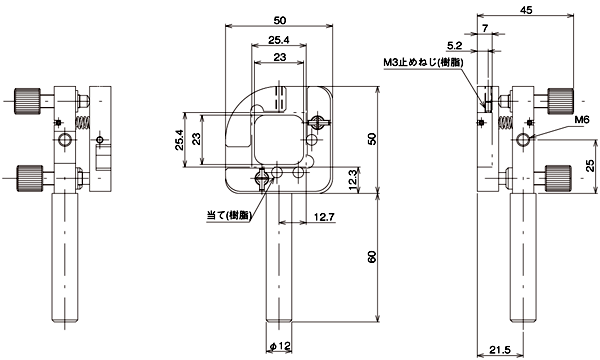

Specification drawings(or pictures)
