Lens Holders

C-28-25.4

1
Lens holder φ25.4
Estimate separately
Classification Standard Lens holder
Shape conforming element φ25.4mm
YESRoHS対応状況

Product documentation

Description

This is lens holder for circular lens or mirror.

Specifications

Classification Standard Lens holder
Shape conforming element φ25.4mm
Thickness conforming element 12mm
Method of fixation Using fitting ring
Clear Aperture(mm) φ23
Optical axis height(mm) 21.5
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.11kg

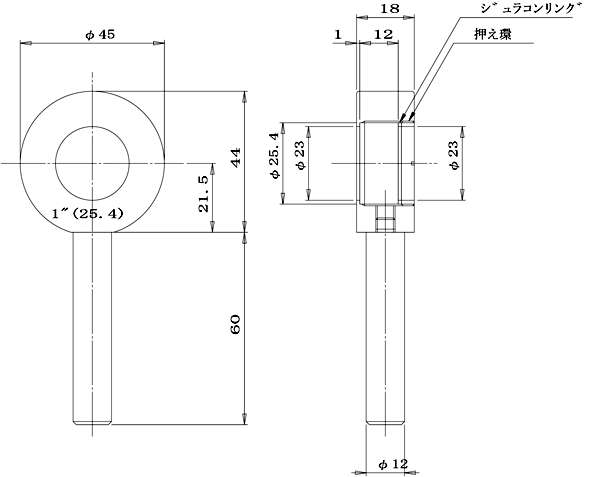

Specification drawings(or pictures)
