Polarizer Holder

POH-30

1
Polarizer holder φ30
Estimate separately
Classification Polarizer holder
Shape conforming element φ30mm

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

This is polarizer holder for circular linear polarizer. Coarse and fine adjustment is available..
▲PAGE TOP

Specifications

Classification Polarizer holder
Shape conforming element φ30mm
Thickness conforming element 1mm to 13mm
Clear Aperture(mm) φ27
Adjustable range Coarse adjustment：360°, fine adjustment：±4°
Scale interval Vernier reading 5′
Optical axis height(mm) 33.9
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.15kg
▲PAGE TOP

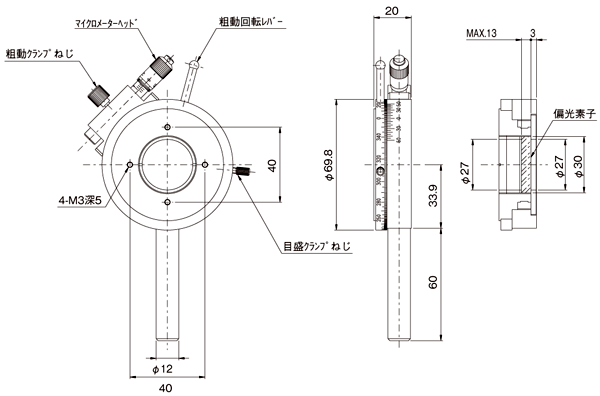

Specification drawings(or pictures)
