Prism Holders

IR-P1

1
Tilt and rotartion prism holder
Estimate separately
Shape conforming element Hight：maximum 25mm

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

This is holder for cube prism with tilt and rotation alighnment.
▲PAGE TOP

Specifications

Shape conforming element Hight：maximum 25mm
Adjustable range Tilt : two axis ±2°,　rotation : ±5°
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.45kg
▲PAGE TOP

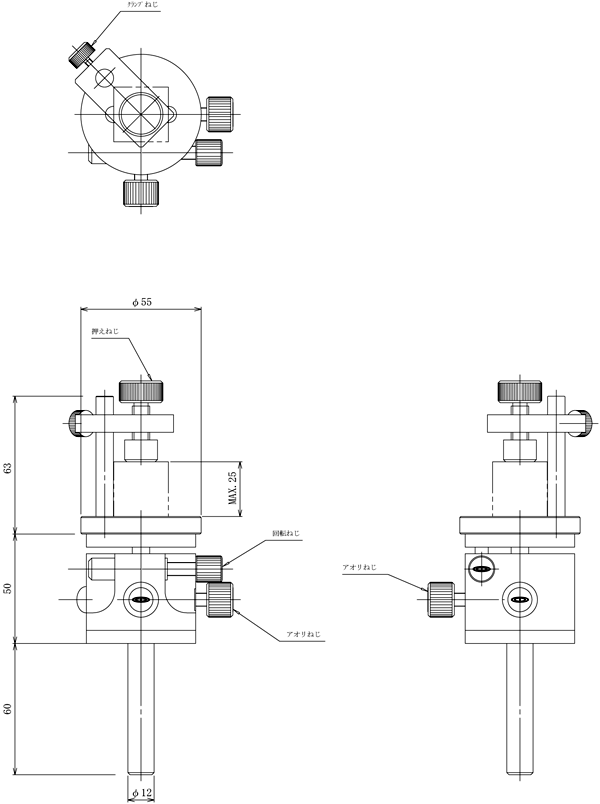

Specification drawings(or pictures)
