Camera Holder

IR-CB

1
Tilt and rotation camera holder B
Estimate separately
Specification Tilt : two axis ±2°, rotation : ±5°, Maximum height : 30mm diameter

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

IR-CB is a camera holder with tilt and rotation alignment.
It can be used for maximum height 30mm diameter.
▲PAGE TOP

Specifications

Specification Tilt : two axis ±2°, rotation : ±5°, Maximum height : 30mm diameter
Mounting shaft(mm) 12mm diameter, 60mm length
Weight 0.4kg
▲PAGE TOP

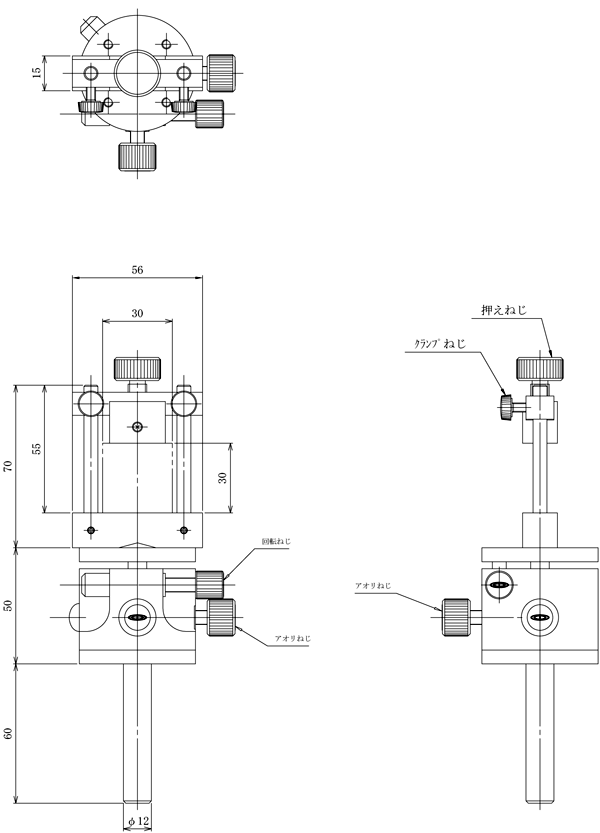

Specification drawings(or pictures)
