Desktop type Vibration-Isolation Base

PB-STX600

1
Table type vibration-isolation base
Estimate separately
Plate size(Width×Depth) 368 mm × 499 mm

Product documentation

Description

This is low-profile, three-point mounting, maintenance free table type vibration-isolation base for microscope.

Specifications

Height 22 mm (no load)

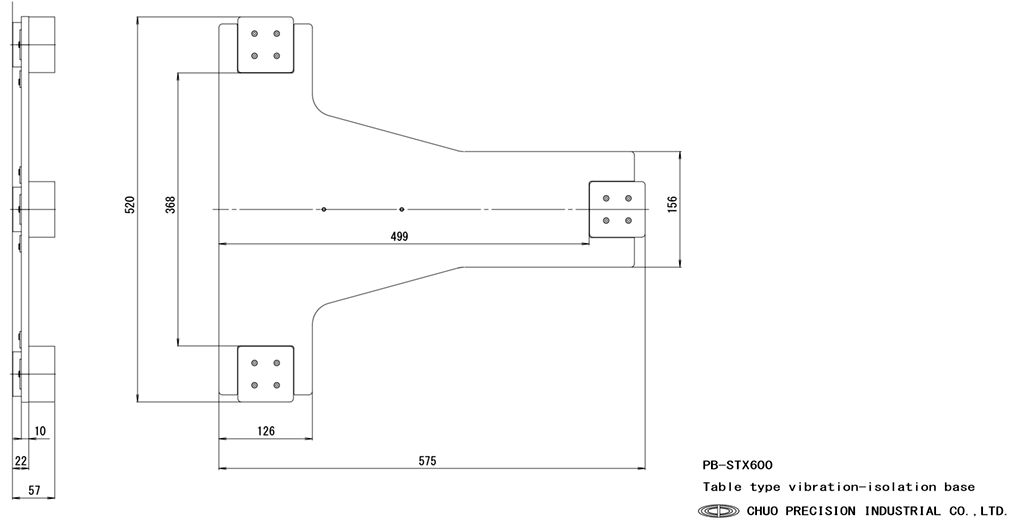

Plate size(Width×Depth) 368 mm × 499 mm
Load capacity 10 to 35 kg
Natural frequency Horizontal direction Applox. 2.7 Hz
Natural frequency Vertical direction Applox. 5.5 Hz
Plate material Aluminum (A5052)
Pressure requirement Unnecessary
Weight 6 kg

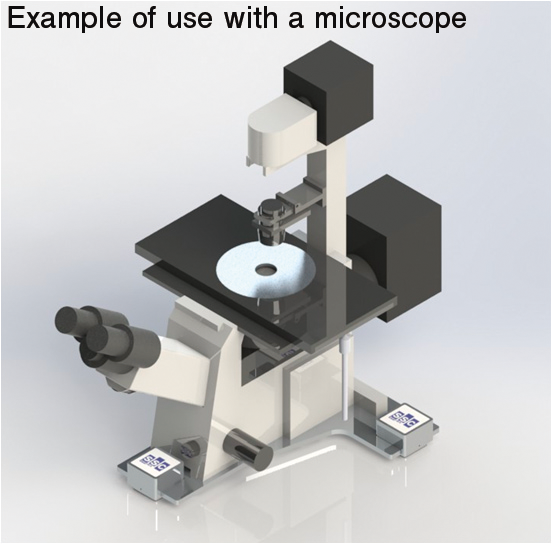

Supplemental note Application examples:optical microscopes

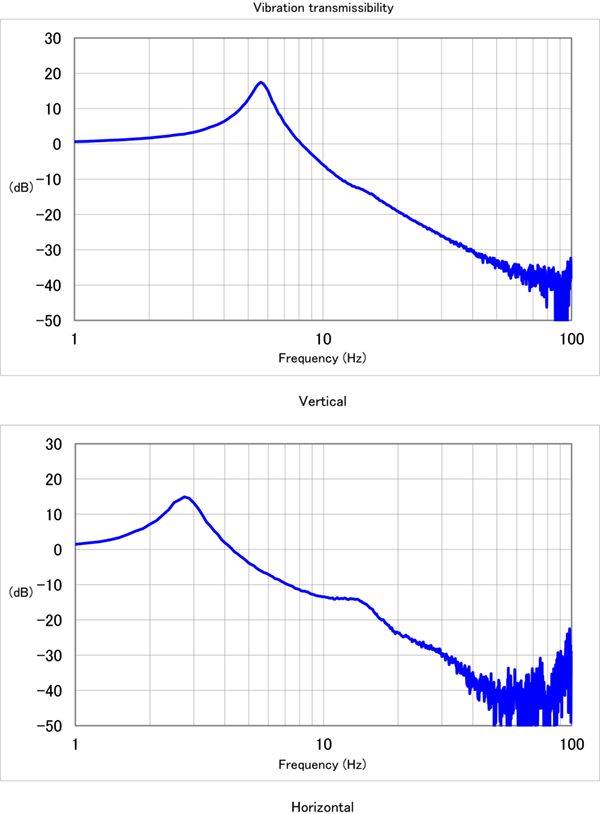

Technical data

Suppliment
