Stand

SV-12P

1
Adjustable stand φ12
Estimate separately
Diameter of the shaft fit φ12mm
YESRoHS対応状況

Product documentation

Description

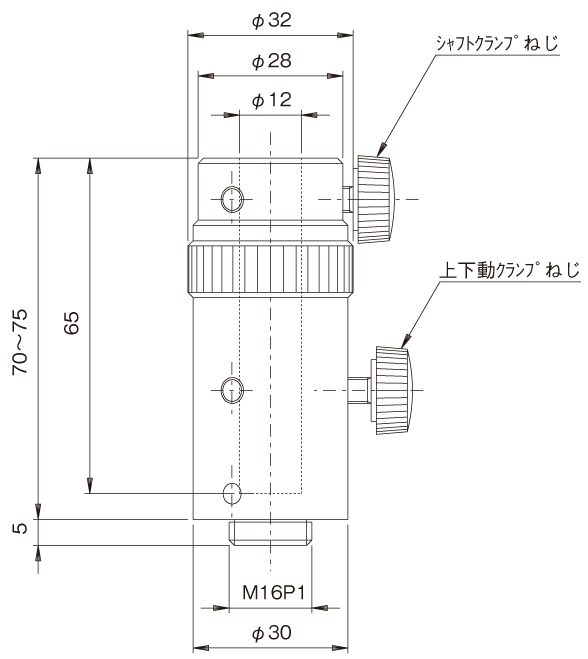

This is an adjustable stand for 12mm diameter (shaft or pole). It is equipped with three clamp screw holes and can be clamped any clamp screw.

Specifications

Diameter of the shaft fit φ12mm
Height 70mm to 75mm
Number of clamp screws 2 (apply from June 1, 2018)
Screws on the bottom M16P1
Weight 0.12kg
