Tool Scope type I

TS-I-05-10-9

1
Tool Scope Type I
Estimate separately
Microscope tube Straight tube
Objective OB-05
Eyepiece OC-10
Reticles Crossed micrometer 4

Product documentation

Description

TS-I type is a straight tube Tool Scope.
The internal optical system uses prisms to create an erect image.
By adjusting the diopter of the eyepiece (by rotating the top of the eyepiece), you can clearly see the magnified image.
We will assemble the objective lens, eyepiece, and reticle before shipping.
Combinations such as without objective lens, without eyepiece, and without reticle are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Microscope tube Straight tube
Mechanical tube length 163 mm
Objective OB-05
Eyepiece OC-10

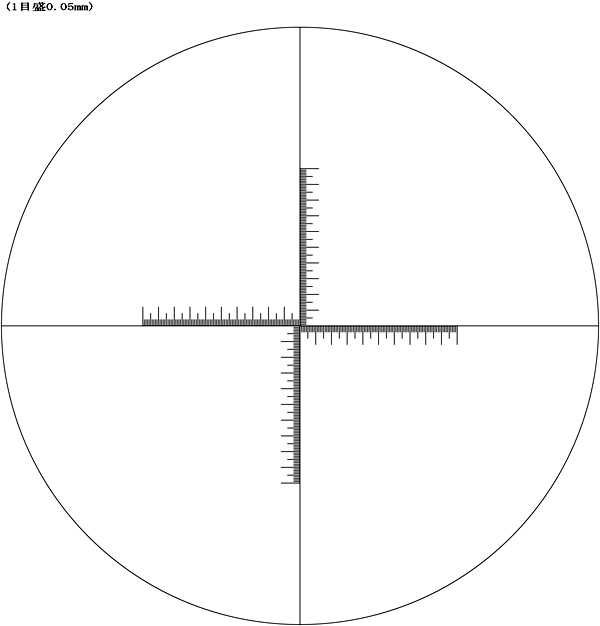

Reticles Crossed micrometer 4
Total magnification 5x
Working distance(W.D.) 365 mm
Field of view φ36 mm
Weight 0.4 kg

Table of magnification

Reticle

Option
