Tool Scope type L

TS-L-05-10-2

1
Tool Scope Type L
Estimate separately
Microscope tube Tilt angle: 90 degrees
Objective OB-05
Eyepiece OC-10

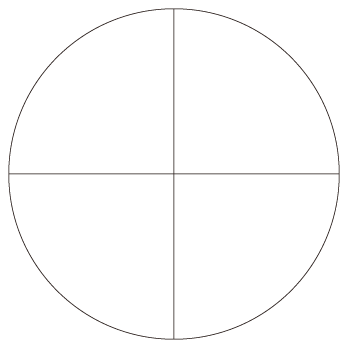

Reticles Crossline

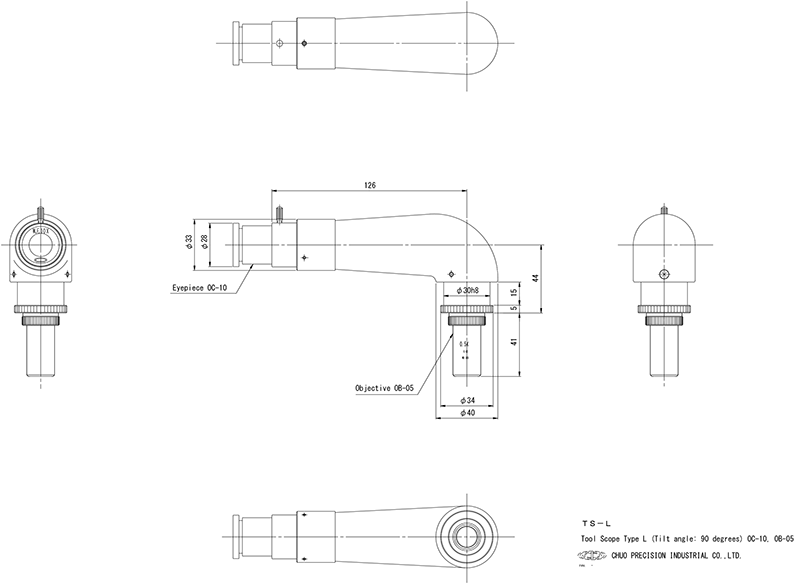

Product documentation

Description

TS-L type is a Tool Scope with microscope tube tilt angle of 90 degrees.
The internal optical system uses prisms to create an erect image.
By adjusting the diopter of the eyepiece (by rotating the top of the eyepiece), you can clearly see the magnified image.
We will assemble the objective lens, eyepiece, and reticle before shipping.
Combinations such as without objective lens, without eyepiece, and without reticle are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Microscope tube Tilt angle: 90 degrees
Mechanical tube length 163 mm
Objective OB-05
Eyepiece OC-10
Reticles Crossline
Total magnification 5x
Working distance(W.D.) 365 mm
Field of view φ36 mm
Weight 0.4 kg
