Tool Scope type IE

TV-IE-L5

1
Tool Scope Type IE
Estimate separately
Microscope tube Straight tube
Objective LWD-5

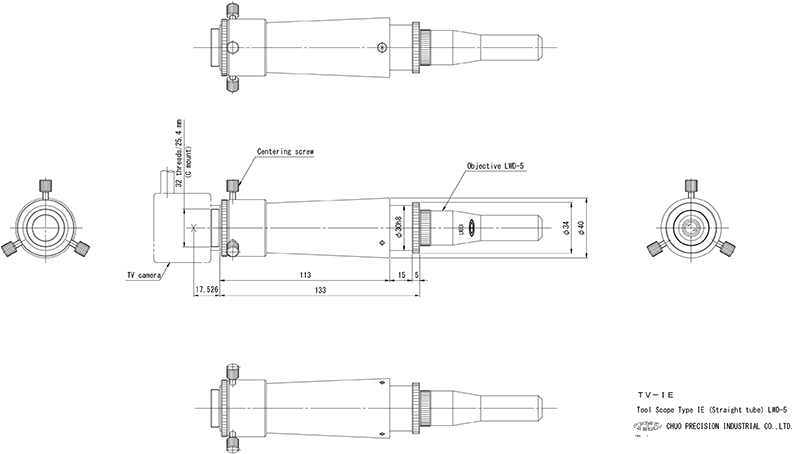

Product documentation

Description

TV-IE type is a Tool Scope equipped with C-mount for TV cameras.
You can adjust the centering of the C-mount by receiving the image of the objective lens directly on the TV camera.
We will assemble the objective lens before shipping.
Combinations such as without objective lens are also possible. Please contact us.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Microscope tube Straight tube
Mechanical tube length 163 mm
Objective LWD-5
Working distance(W.D.) 45 mm
C mount 32 threads/25.4 mm, Flange focal length is 17.526 mm
Weight 0.4 kg

Table of magnification

Reticle

Option
