Reticle

TS-P-(5)

1
Reticle type crossed micrometer 2
Estimate separately
YESRoHS対応状況

Product documentation

Description

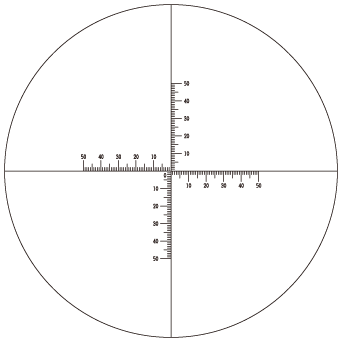

TS-P-(5) is a Crossed micrometer 2 (0.1 mm/1 div.) type reticle for the Tool Scope.
The dimension of reticle is 19 mm in diameter and 1 mm in thickness.
Eyepiece (OC-10, OC-20) and TV adapter (TS-TVA) are shipped with one type specified reticle.
Please note that the reading value of the sample varies depending on the magnification of the objective lens used.
Graduation (reading value) = 0.1 mm ÷ Objective lens magnification.
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.

Specifications

Size Diameter: 19 mm, thickness: 1 mm
