Objective Lens

LWD-5

1

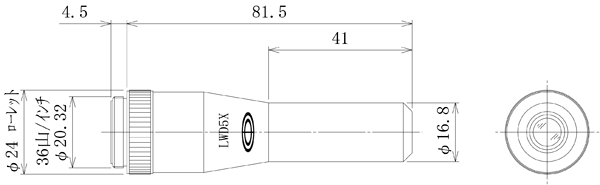

Objective lens 5x type long working distance
Estimate separately
Magnification 5x

Product documentation

  • カタログPDF
  • 図面PDF
  • 図面DXF
  • 技術資料
▲PAGE TOP

Description

OB or LWD type is an objective lens for the Tool Scope.
The mounting screw is 36 threads/inch φ20.32 (JIS B 7141).
ツールスコープ is the registered trademark of Chuo Precision Industrial Co.,Ltd. in Japan.Tool Scope is the trademark of Chuo Precision Industrial Co.,Ltd.
▲PAGE TOP

Specifications

Magnification 5x
N.A. 0.07
Focal Length 38.6 mm
Resolution 4.33 μm (Calculated value)
Supplemental note Working distance (W.D.) : 45 mm
* When using an objective lens in a Tool Scope.
