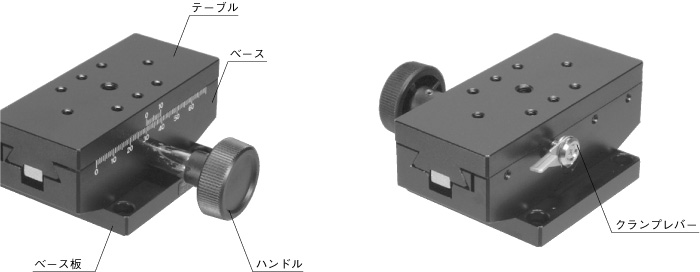

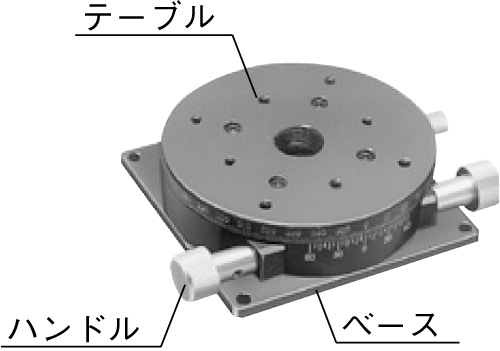

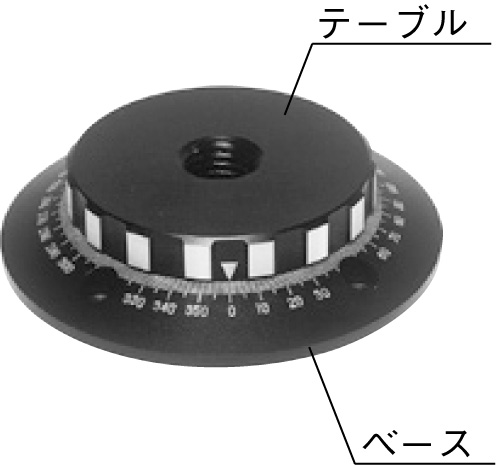

By removing the base board, combination by using either one of XY, Z, XYZ, and XZ is available . D-T method stage is mainly applying the rack and pinion method as the transfer method. The base and the base board are at the fixed side. Turning the handle moves the table.

With the spring loading between the moving table and the micrometer head spindle, it provides a great repeatability and a backlash as small as ignorable.
By applying proper pre-compression (preload) to the guide, it is manufactured as the clearance of the guide becomes zero.

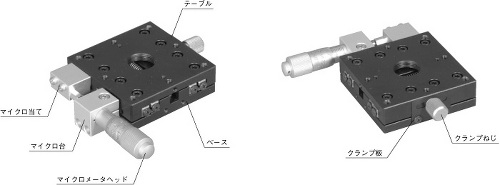

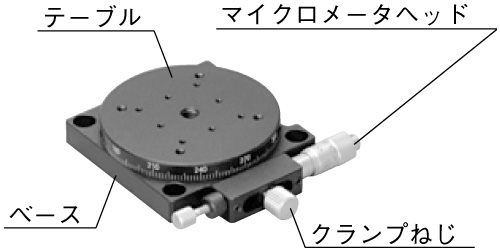

For V-B and V-CR method stages, the table is transferred by mainly using the micrometer head.
When the base is at the fixed side, turning the micrometer head moves the table.

　
　

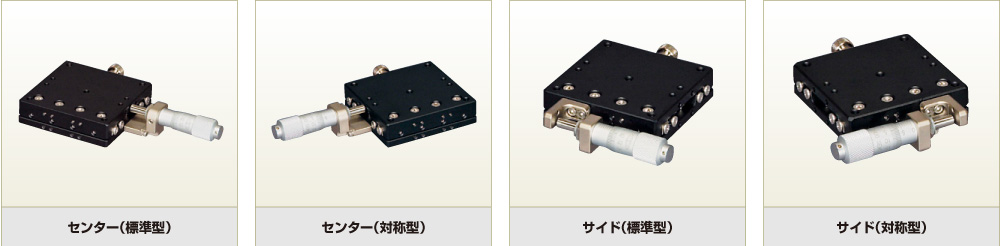

Positions of the micrometer head attached to the stage are center, side, and symmetry of both.

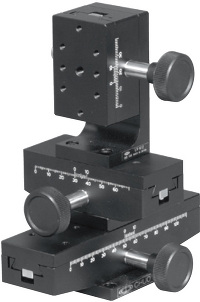

In the XY axis stage, there are two types of stages. One is the superposition of X axis stages. Another one is the 3-stage structure with the X axis (lower axis) table and Y axis (upper axis) base as the integral structure for making the stage height low.
The stage, which the high-precision and high-rigidity HG-VCR method is applied, is structured with a good orthogonal precision with a superposition of X axis stages.
It is available to adjust the orthogonality to be highly precise by combining different type stages. Please contact us separately if such stage is necessary.

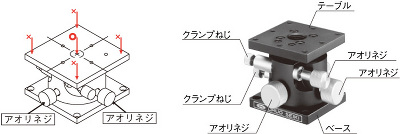

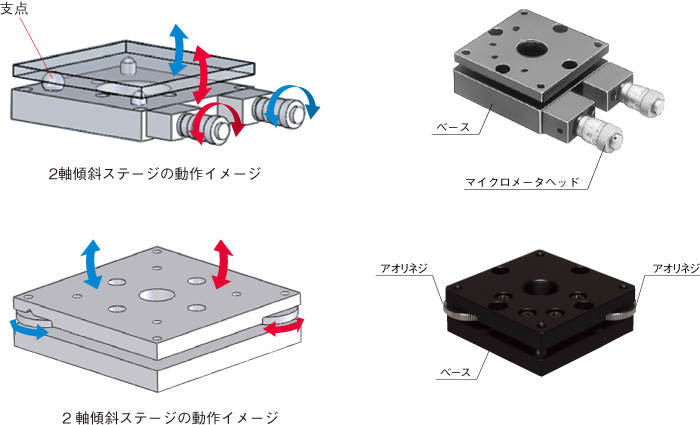

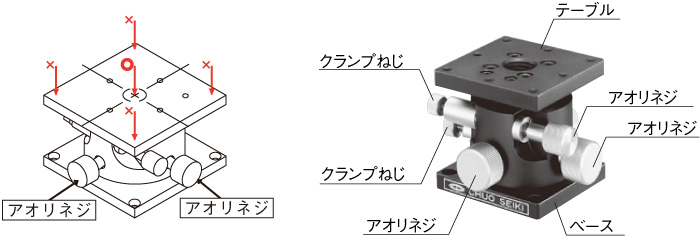

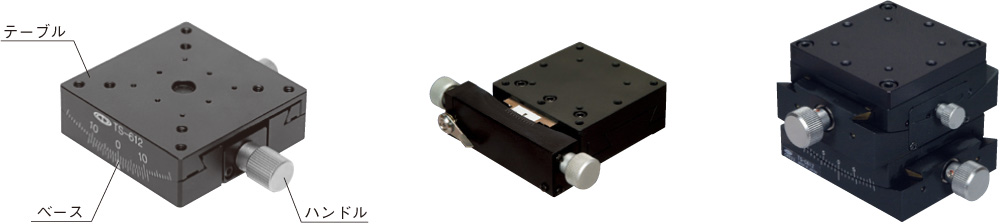

By turning each micrometer head or tilting screw makes the table tilt. There is no clamp mechanism provided.

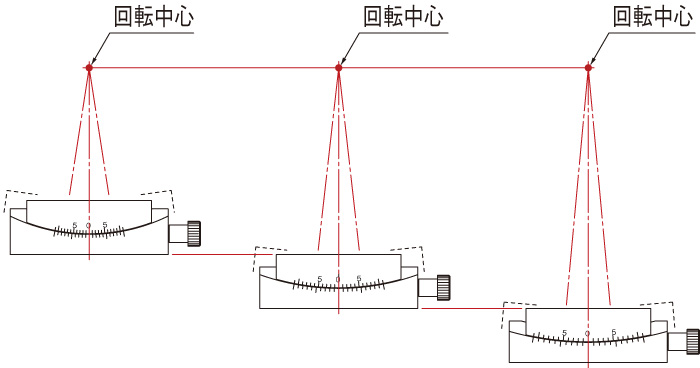

Turning the handle makes the table tilt. By superposition of two units, it becomes two-axis tilt with same rotation center position. Goniometer stage that does arc motion on the horizontal surface is also available.
