Rhomboid Prisms

RBP-50

1
Rhomboid prism (uncoated)
Estimate separately
Classification Rhomboid prism (RBP)
Coating Uncoated
External form D(mm) 70.7
YESRoHS対応状況

Product documentation

Description

Rhomboid prism is commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prism will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism (specified by dimension D). Rhomboid prism features high tolerance angles that keep the output beam parallel to the input beam to within 30arcseconds.

Specifications

Classification Rhomboid prism (RBP)
Coating Uncoated
External form A(mm) 50
External form B(mm) 50
External form C(mm) 35.4
External form D(mm) 70.7
Material N-BK7
Externals Tolerance(mm) ±0.1
Angle tolerance ±5″
Deviation ±30″
Surface Accuracy 1/8λ
Surface quality 40-20

Curve(FOR REFERENCE ONLY)

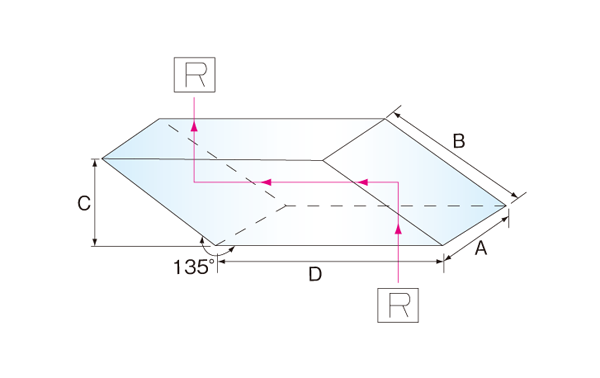

Specification drawings(or pictures)
