Apertures

AD-12

1
Iris diaphragm (maximum aperture φ12)
Estimate separately
Classification Iris
Maximum Aperture d(mm) φ12
YESRoHS対応状況

Product documentation

Description

Iris diaphragm has been specifically designed for general laboratory use. All offer exceptionally smooth operation over the lever travel, from maximum to minimum aperture (approximately 90°). Lever actuators are available in two styles: stainless steel “pin” or plastic “tab.” All standard series diaphragms have blued spring steel leave construction and black housing finish.

Specifications

Classification Iris
Maximum Aperture d(mm) φ12
Minimum Aperture d(mm) φ0.8
Number of blade 10
External form D(mm) 19.8
Thickness 5
Lever Length 11.5

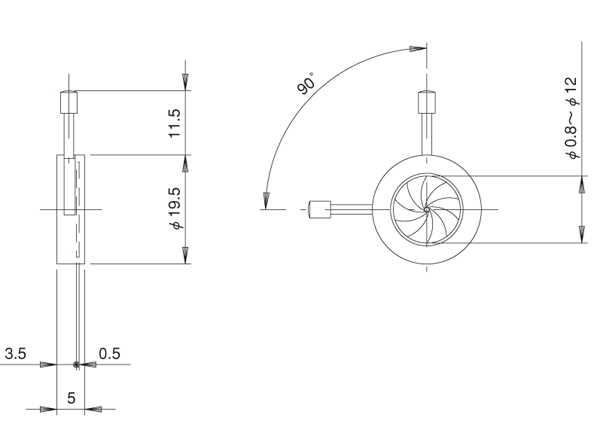

Specification drawings(or pictures)
