Apertures

AD-36H

1
Iris diaphragm with holder (maximum aperture φ36)
Estimate separately
Classification Iris
Maximum Aperture d(mm) φ36
YESRoHS対応状況

Product documentation

Description

Iris diaphragm has been specifically designed for general laboratory use. All offer exceptionally smooth operation over the lever travel, from maximum to minimum aperture (approximately 90°). Lever actuators are available in two styles: stainless steel “pin” or plastic “tab.” All standard series diaphragms have blued spring steel leave construction and black housing finish.

Specifications

Classification Iris
Maximum Aperture d(mm) φ36
Minimum Aperture d(mm) φ1.5
Number of blade 16
Optical axis height(mm) 30.5
ホルダ高さ(mm) 61.5
Mounting shaft(mm) φ12mm
ホルダ厚さ(mm) 12

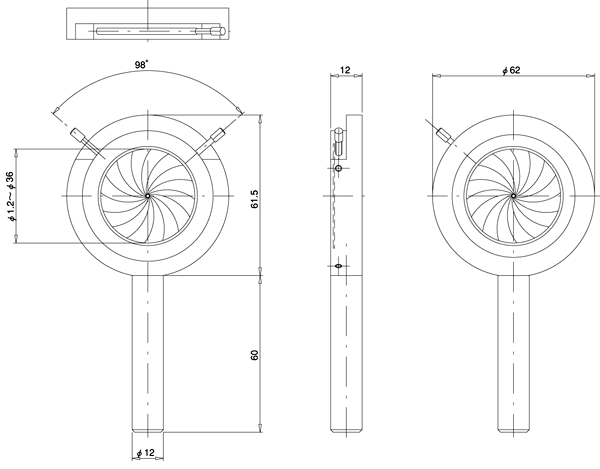

Specification drawings(or pictures)
