Cylinder Lenses(discontinued)

SRDL-3-10

3
Rod lens
Discontinued
Classification Rod lens (SRDL)
Coating Uncoated
External form D(mm) φ3.0
Material Fused silica
YESRoHS対応状況

Product documentation

Description

Rod Lens is polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line.

Specifications

Classification Rod lens (SRDL)
Coating Uncoated
External form D(mm) φ3.0
Over-all length(mm) 10
Material Fused silica
Diameter Tolerance(mm) +0.0/-30μm
Length Tolerance(mm) +0.0/-0.1mm
Surface quality 40-20

Curve(FOR REFERENCE ONLY)

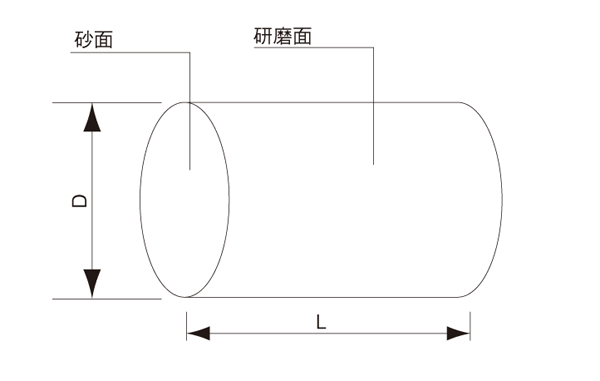

Specification drawings(or pictures)
