GLG5090
3

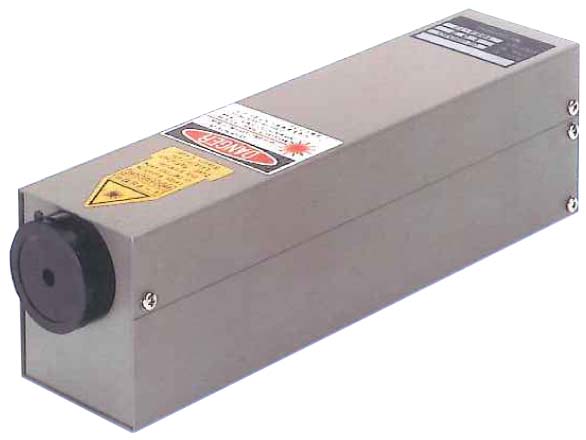

Helium-neon laser
Discontinued
Wavelength
632.8nm
Output power
≧0.5mW
Product documentation
▲PAGE TOP
Description
This is a helium-neon gas laser including power supply..
▲PAGE TOP
Specifications
Wavelength
632.8nm
Output power
≧0.5mW
Spatial mode
TEM
00
(purity>95%)
State of polarization
Random
Beam waist diameter(1/e
2
)
Approx. 0.66mm
Beam divergence angle
Approx. 1.22mrad
Power stability
≦±2.5%/24H
Sweep mode stability
≦±5%
Optical noise
≦3%rms(30Hz to 10MHz)
Operation temperature
0 to 50℃
Storage temperature
-20 to +60℃
Operating humidity
0 to 90%(no condensation)
Power specifications
Self-powered
Dimensions of the oscillator
50mm×72mm×250mm
Weight of the oscillator
1.1kg
Weight of power supply
Input voltage
AC100V±10%(50/60Hz)
Input current
Normal 0.25A
Class of JIS
2
Supplemental note
※Large and high power model was discontinued. ※Domestic sales only in Japan.
